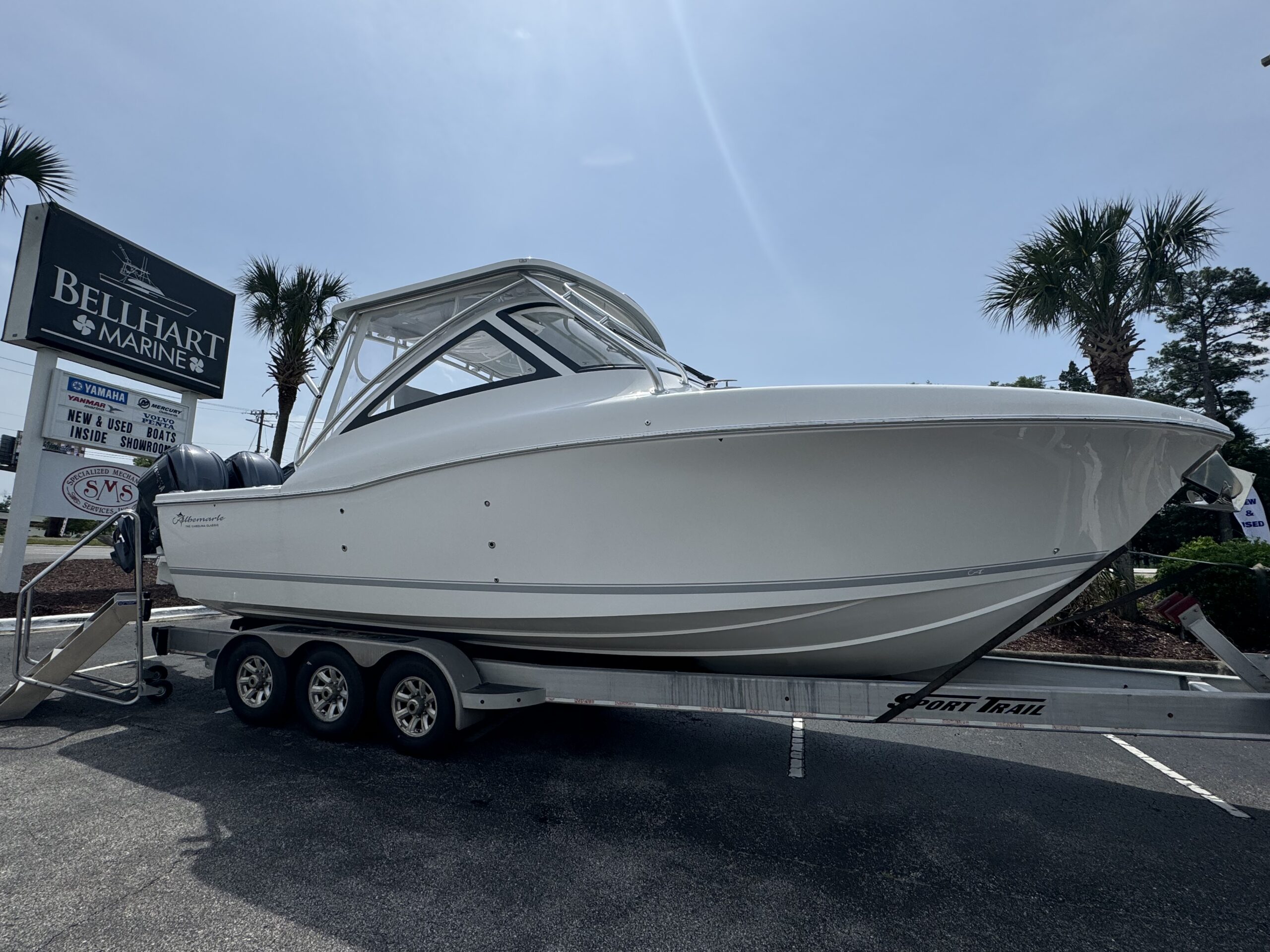

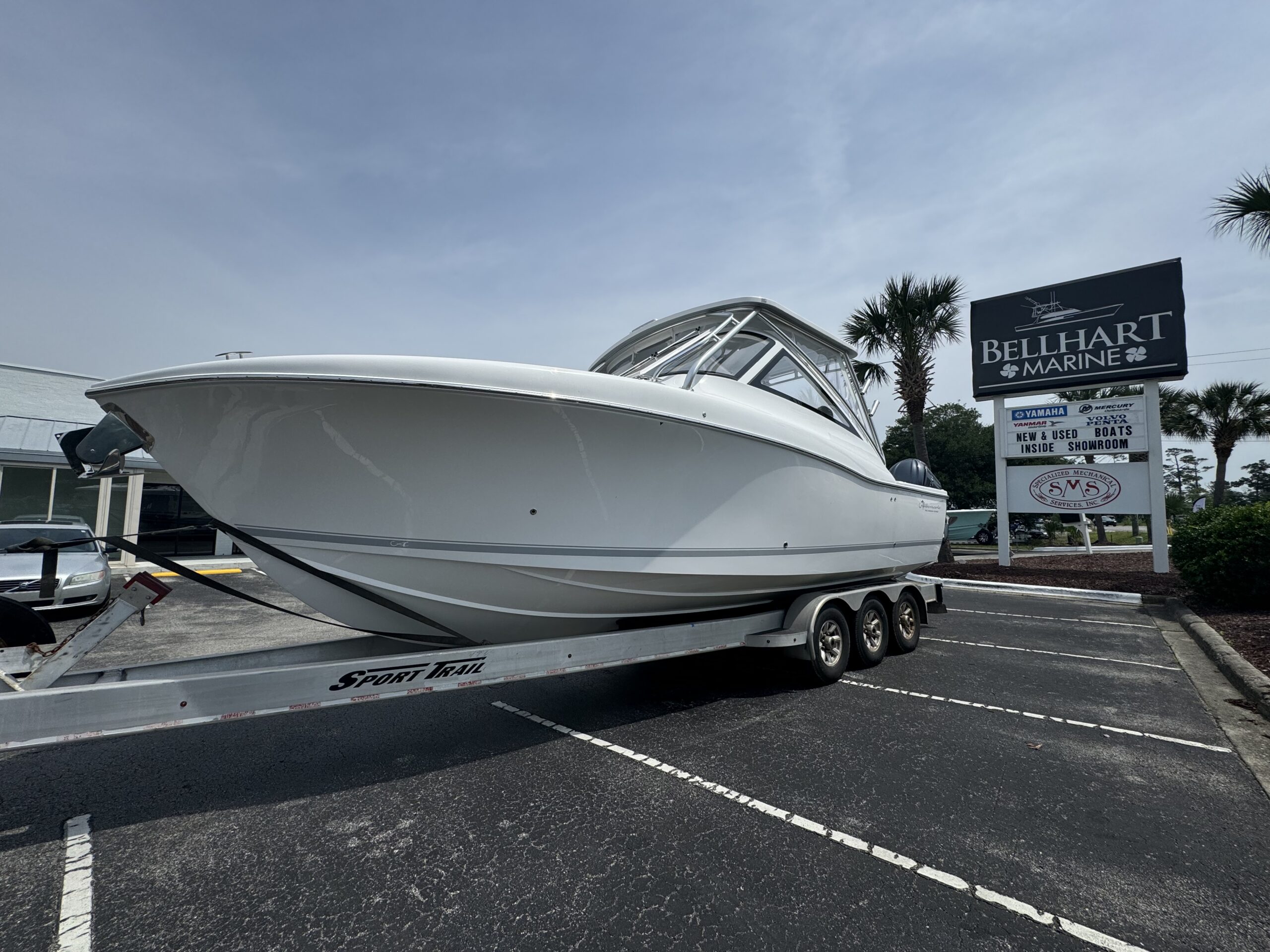

262CX DUAL CONSOLE

6
Aug

The 262CX Crossover is the perfect union of offshore performance and unsinkability of an EdgeWater with the seating, storage, amenities and versatility of an offshore boat. The 262cx will do anything you want to do on the water in an offshore boat while keeping you and your crew safe regardless of the conditions. With its deep-V hull, Single Piece Infusion® (SPI) construction, high-grade components, and the reliability of Yamaha four-stroke technology, the 262cx operates in a class of all its own. Still, it’s an offshore boat that outperforms all comparable boats in any other category.

STANDARD FEATURES:

CONSTRUCTION:

Single Piece Infusion (SPI) Structural System

Limited Lifetime Structural Hull Warranty

NMMA, ABYC & CE Certified

Self Bailing Non-Skid Decks

NO WOOD All Composite Construction

Closed-Cell Foam Flotation

Variable Deadrise Deep V Hull

High Density Composite Transom

White Gelcoat Hull Color

262cx Hardware

HARDWARE:

Walk-thru Transom Door w/ SS Latch

Starboard Side Dive Door w/ Stainless Steel Latch

Folding Transom Boarding Ladder

Welded 316L Stainless Steel Recessed Bow Rail

Heavy Duty White Rubrail w/ Black Insert

Stainless Steel Gunwale Mounted Rod Holders (4)

Stainless Steel Bow and Stern Eyes (3)

10″ Stainless Steel Cleats (6)

Transom Mount Rod Holders (4)

Fire Extinguishers (2)

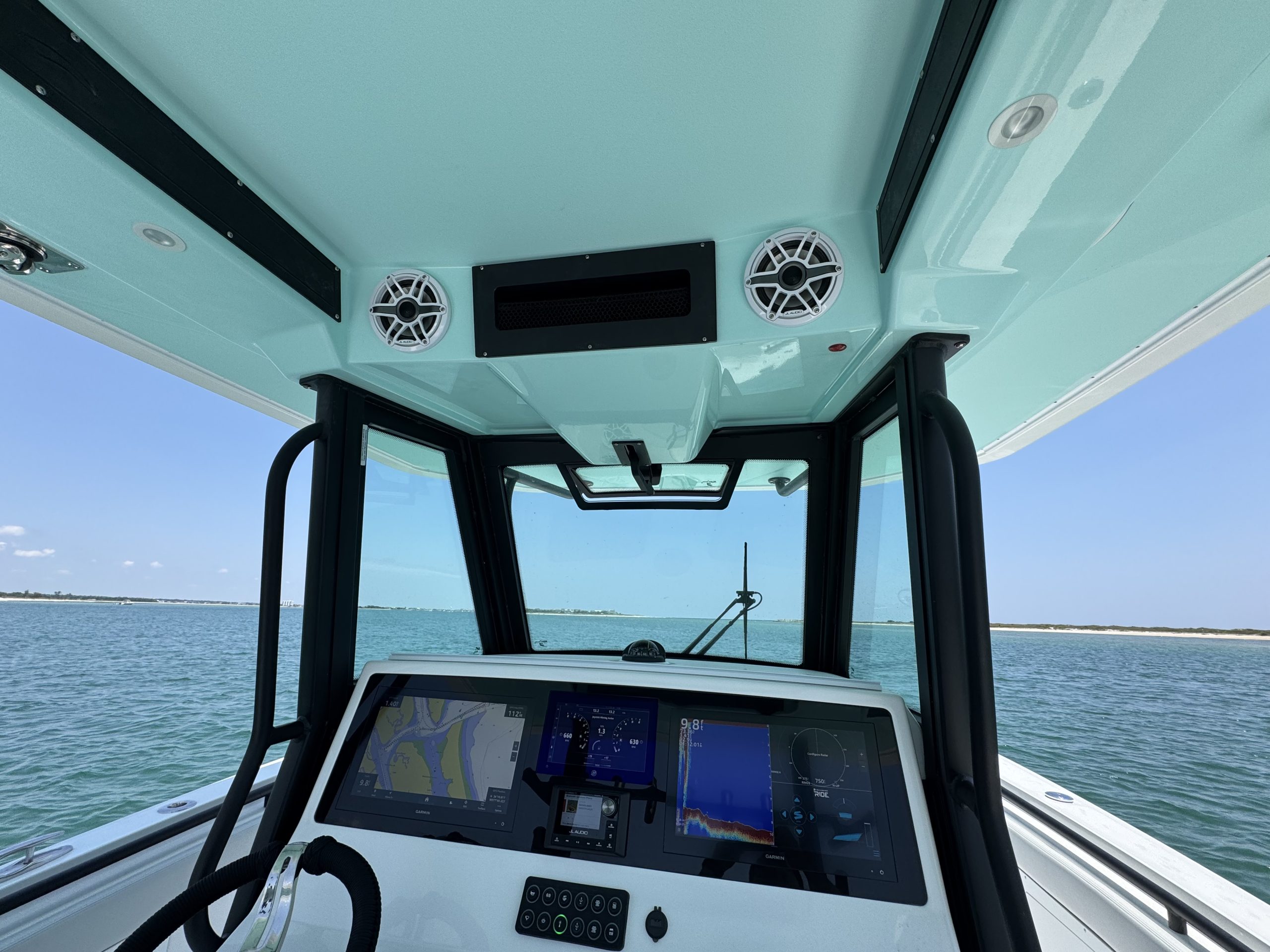

262cx Console & Top

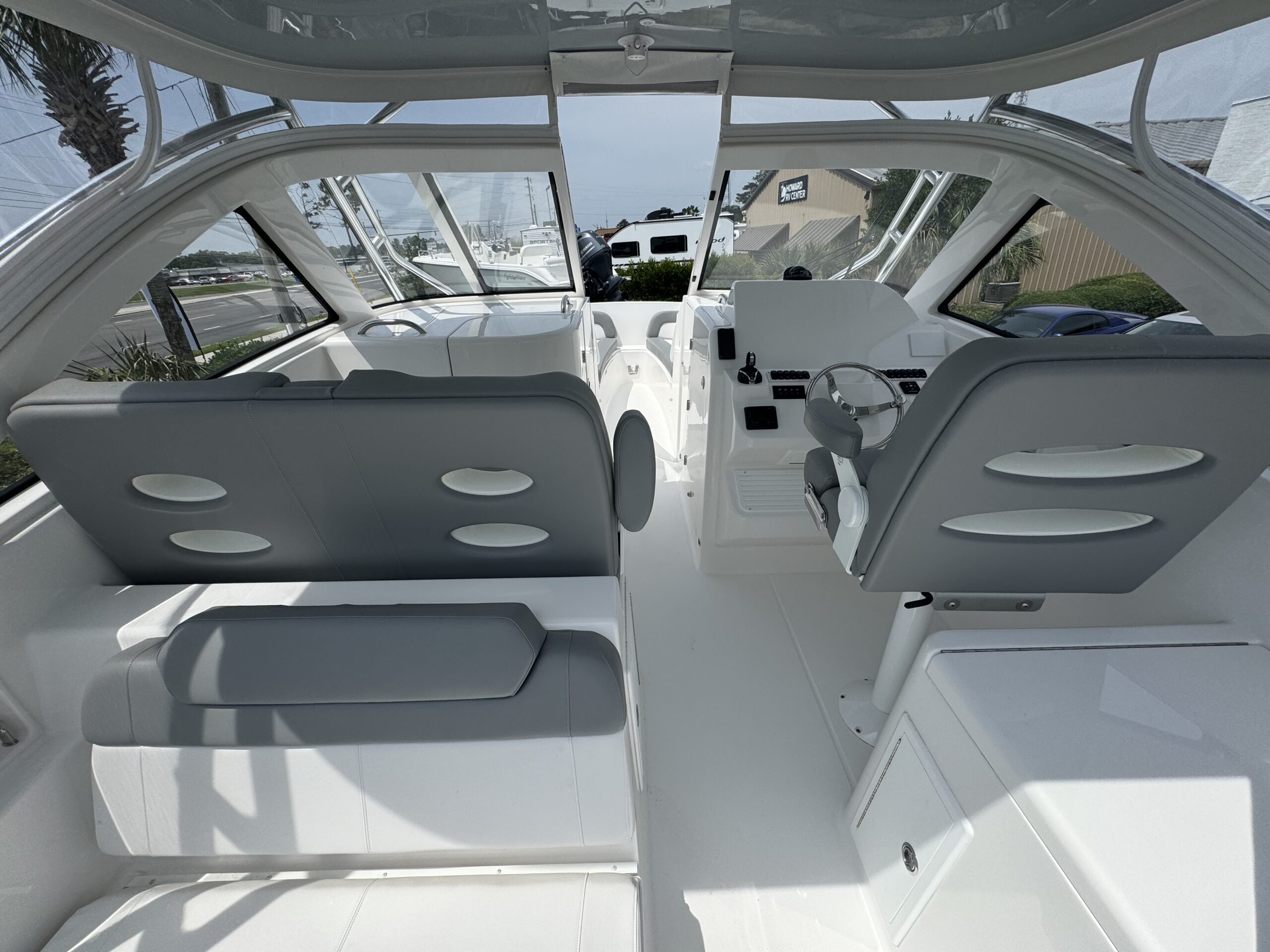

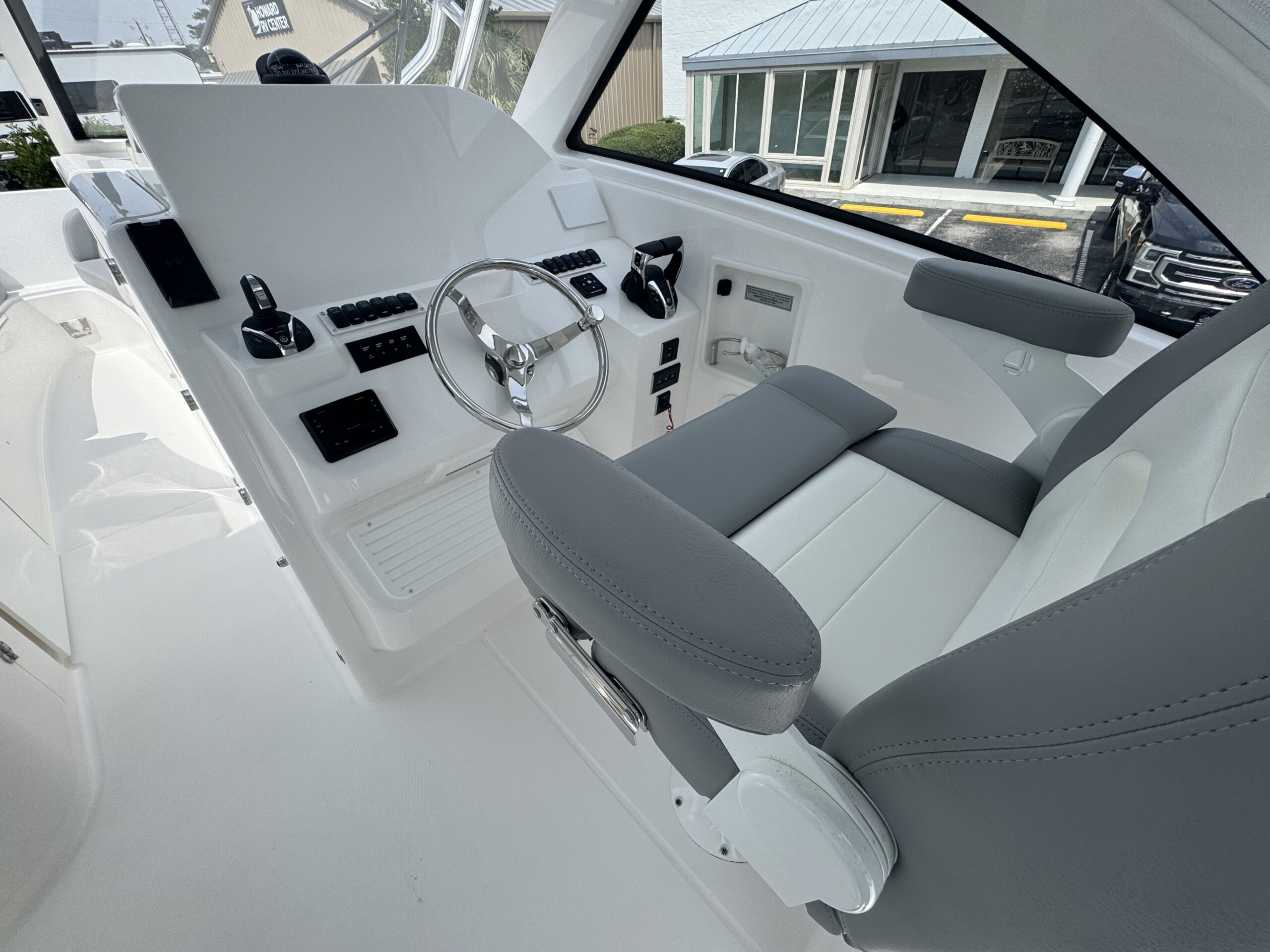

CONSOLE & TOP:

White Powdercoated Fiberglass Hardtop w/ LED Spreader Lights (2) & Electronics Box

Port Console Storage Compartment

Starboard Walk-in Console

Freshwater Sink w/ Pull-out Shower & Corian® Countertop

Electric Fresh Water Head w/19 Gallon Reservoir, Overboard Discharge & Pumpout

Wood Laminate Storage Cabinets in Head Compartment

Custom Tempered Glass Frameless Windshield

Deluxe Stainless Steel Steering Wheel w/ Power Knob

Hydraulic Seastar® Steering w/ Tilt Helm

Ritchie Compass

Under Gunwale Rod Racks

Stainless Steel Cockpit Toe Railsv

Stainless Steel Gunwale Mounted Cup Holder/Rod Holders (4)

Canvas Bow & Cockpit Covers

262cx Electrical System

ELECTRICAL SYSTEM:

LED Cockpit/Livewell Lighting

LED Navigation Lights

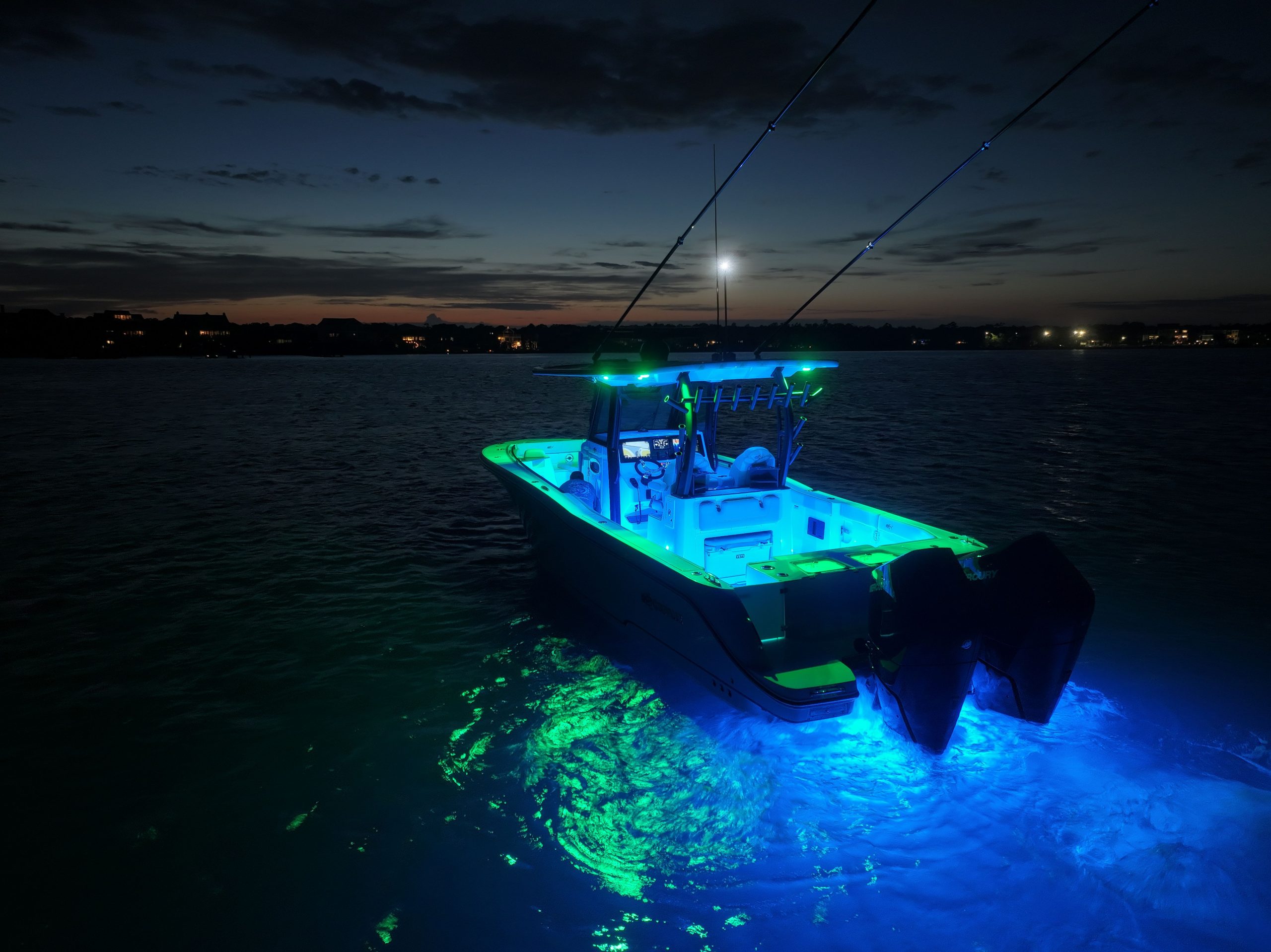

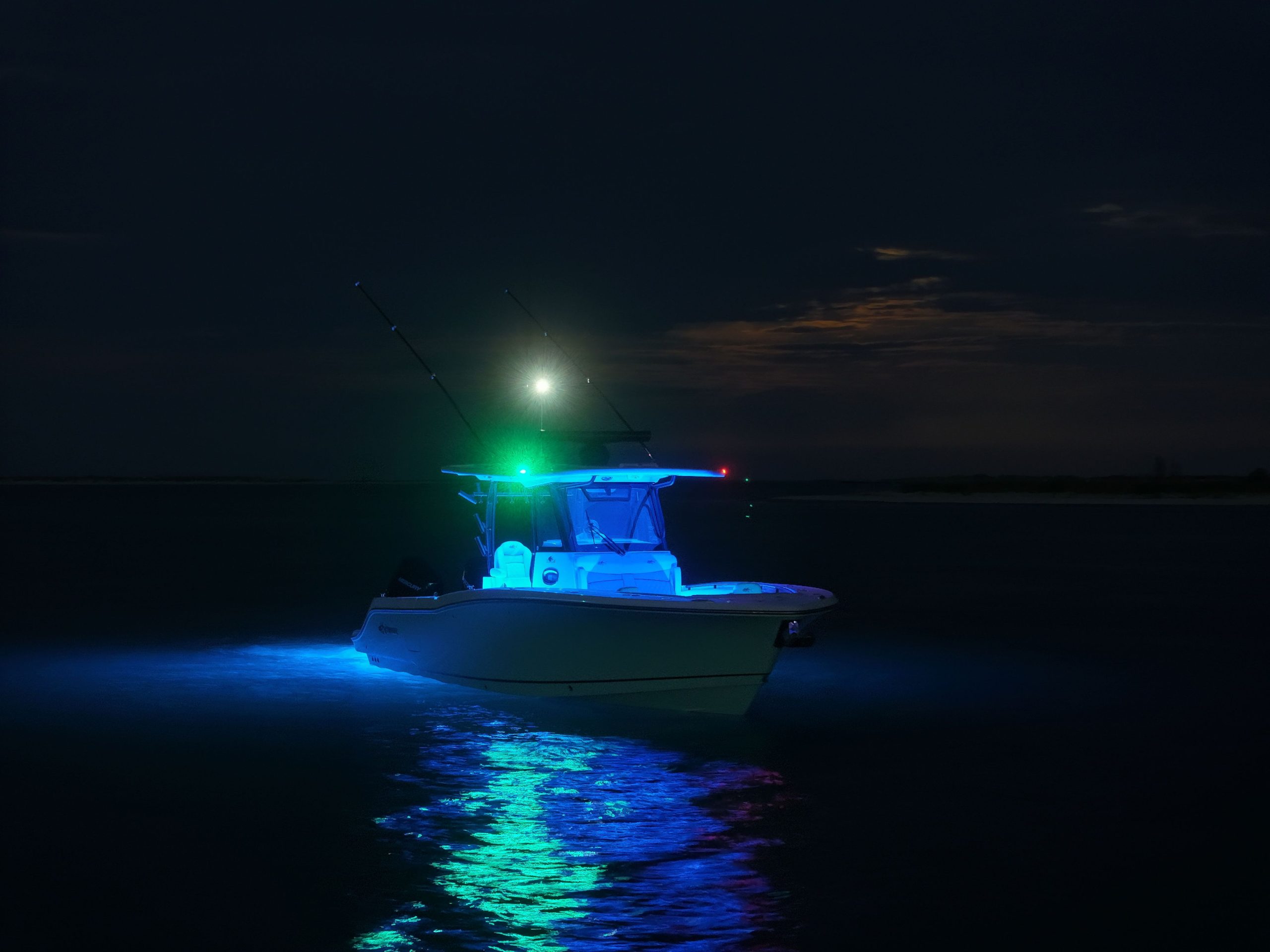

Underwater Blue LED Lights (2)

1250 GPH Auto/Manual Bilge Pump (1)

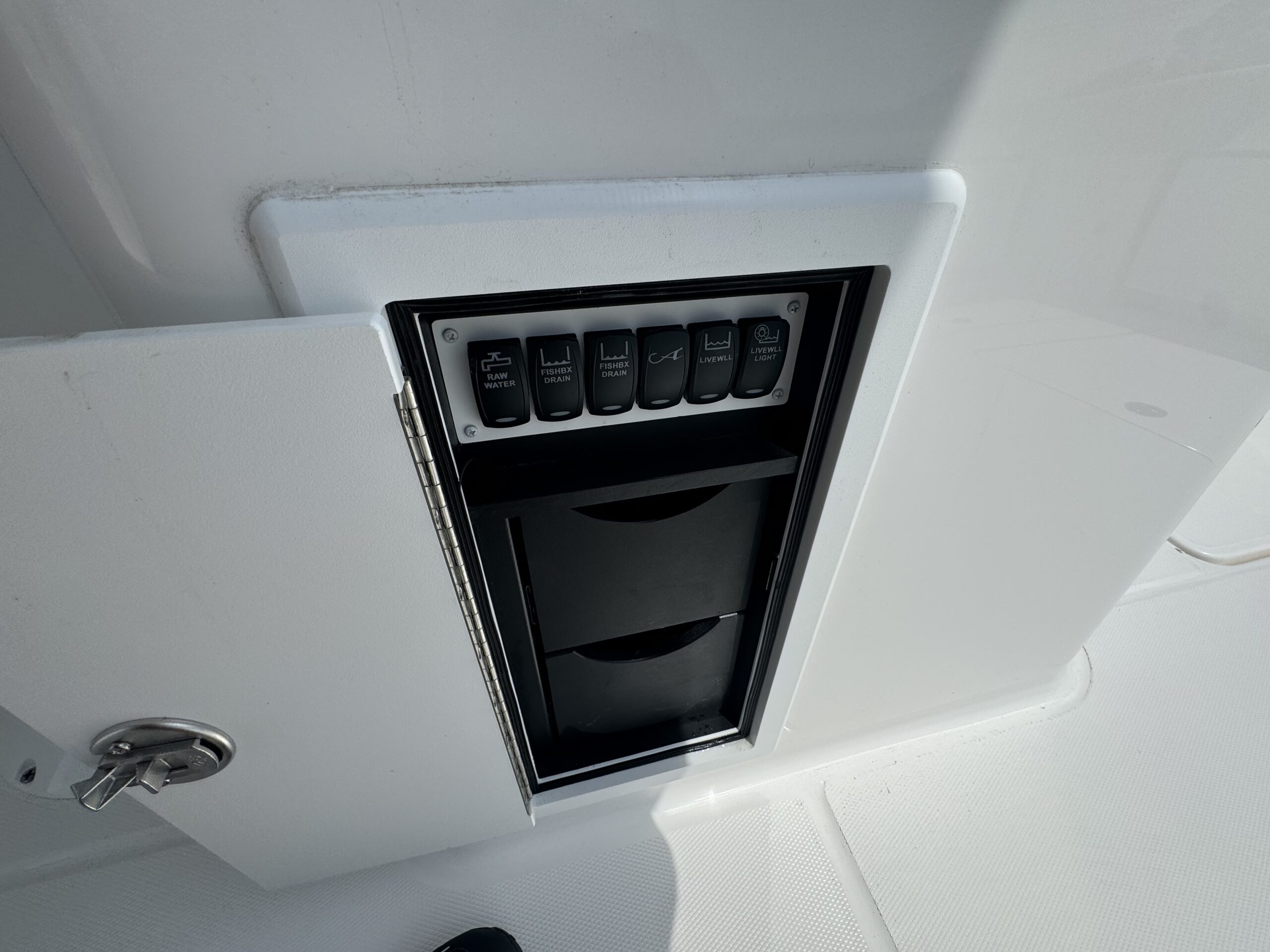

Console Switch Panel w/ Waterproof Switches, Circuit breakers & 12V Outlet

Waterproof Electrical Connectors & Tin-Plated Copper Wiring

Battery Selector Switch & Wiring for Dual Batteries

Transom Freshwater Shower

Raw Water Washdown Outlet

Lenco® Recessed Electric Trim Tabs w/ Indicators

262cx Seating & Storage

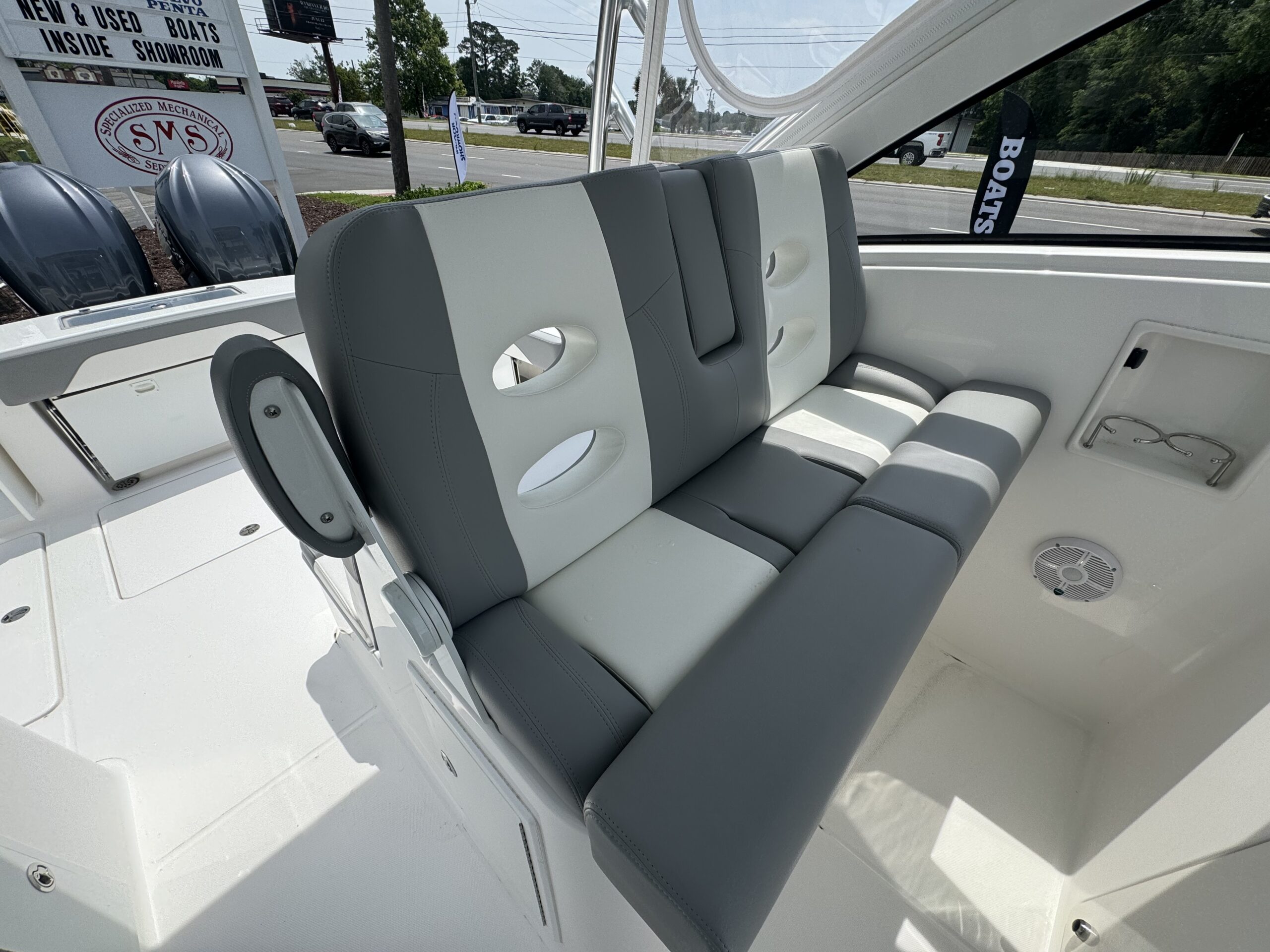

SEATING / STORAGE:

Heavy-Duty Marine Grade UV Resistant Vinyl Upholstery

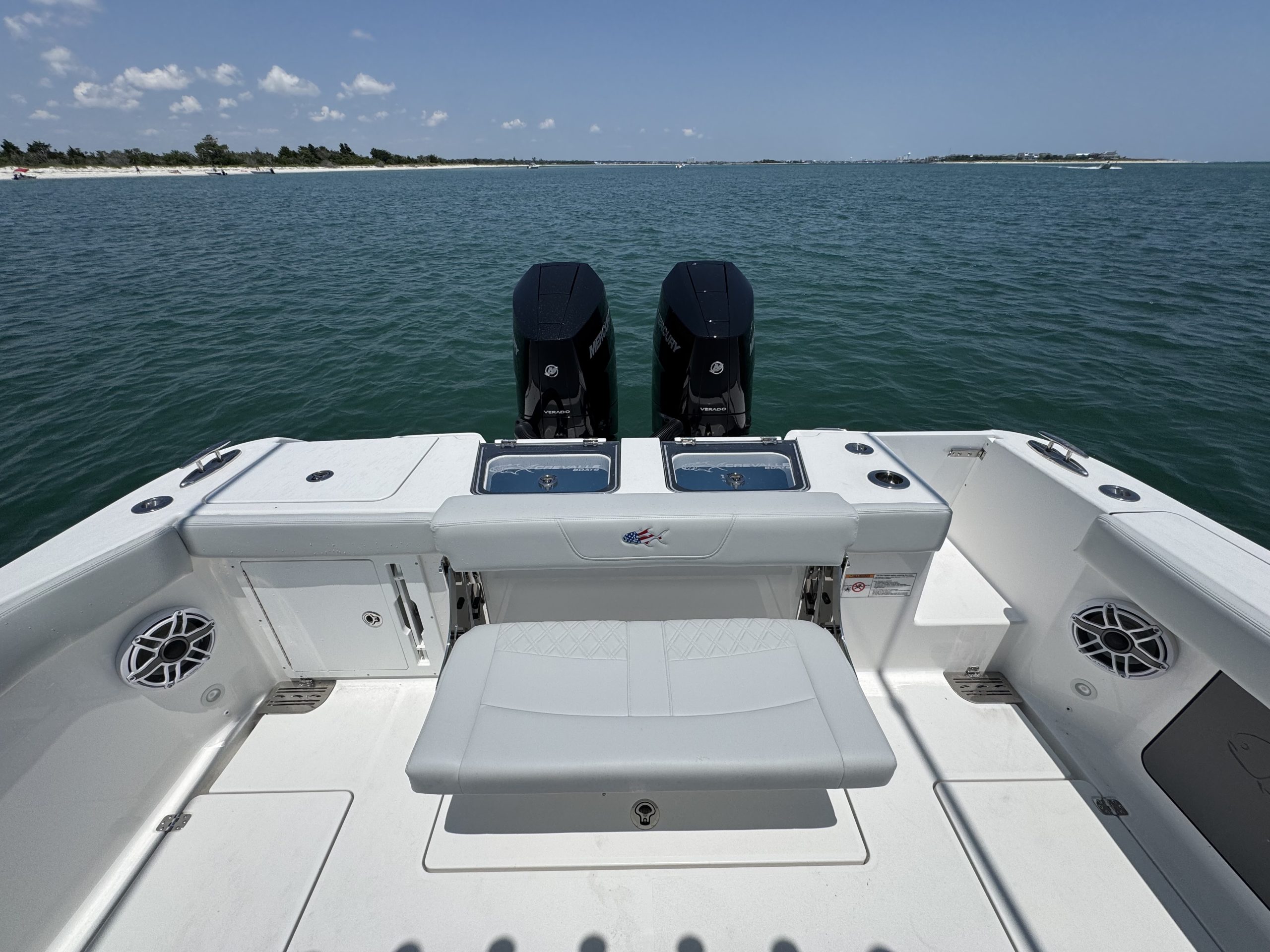

Folding Stern Seat w/ Backrest

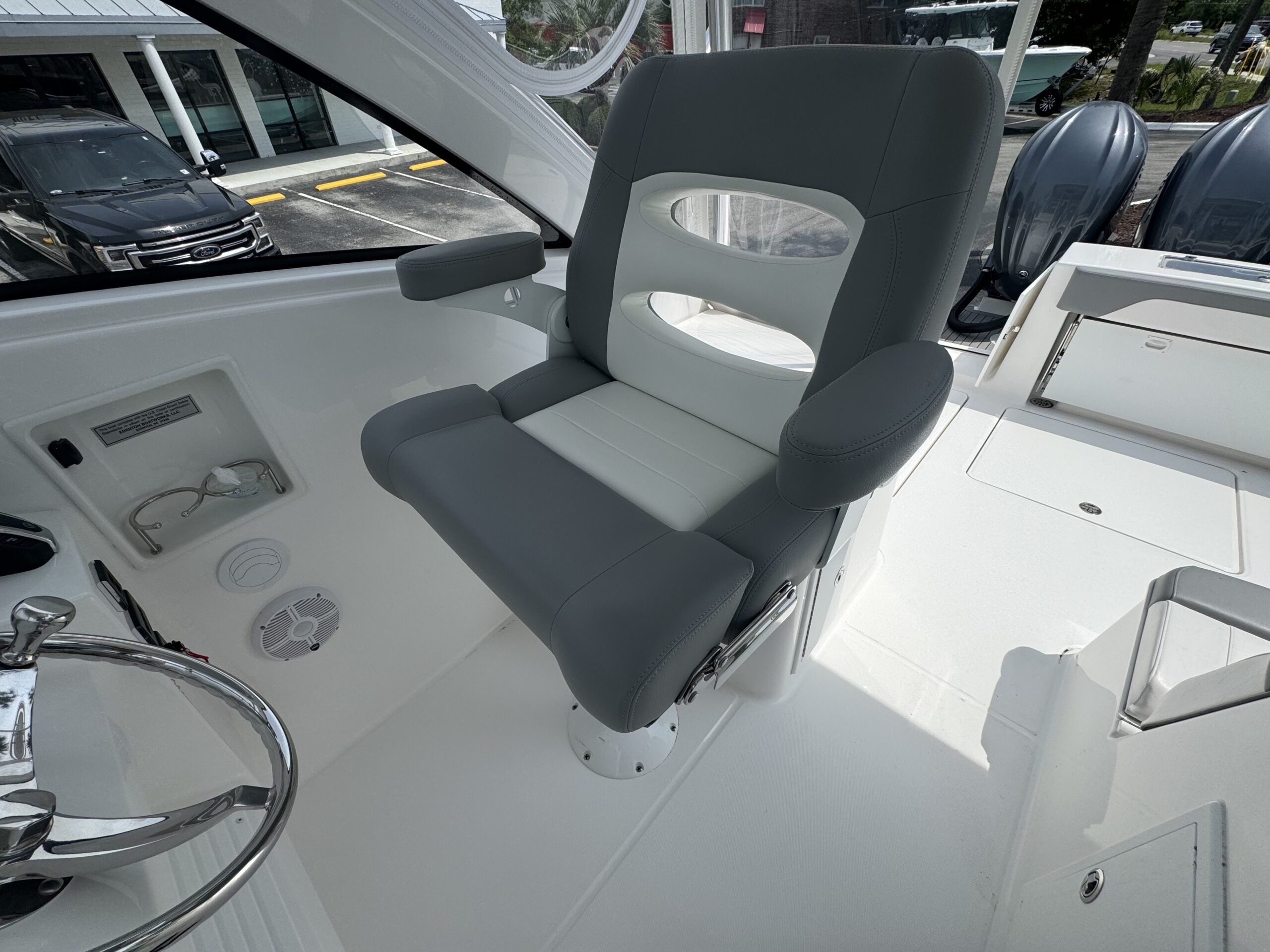

Deluxe Adjustable Double Wide Helm Seat with Bolster

Starboard Side Prep Station w/ Fresh Water Sink, Insulated Storage & Sliding 50QT Premium Cooler

Port Side Ultra Lounger with Insulated Storage

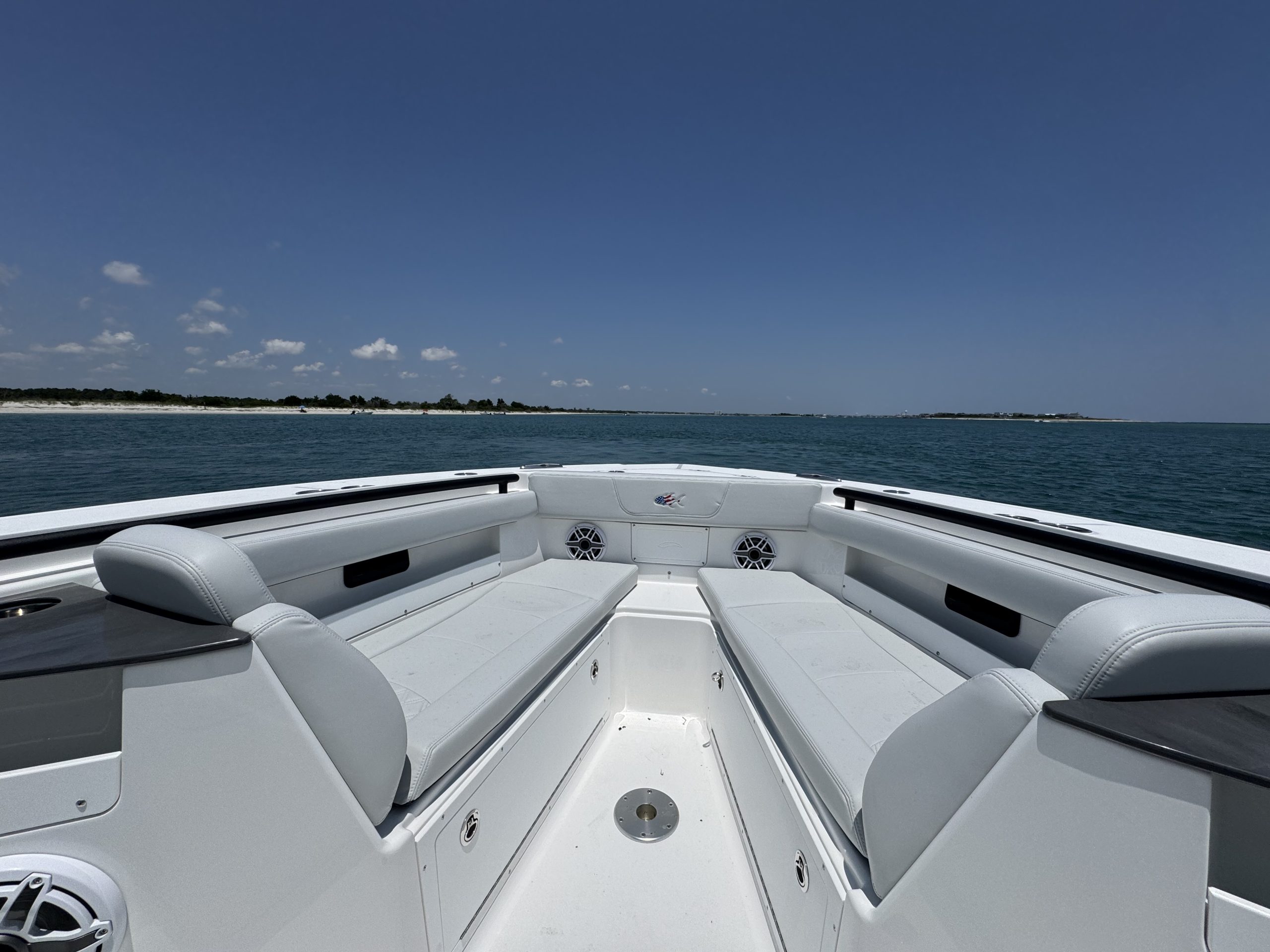

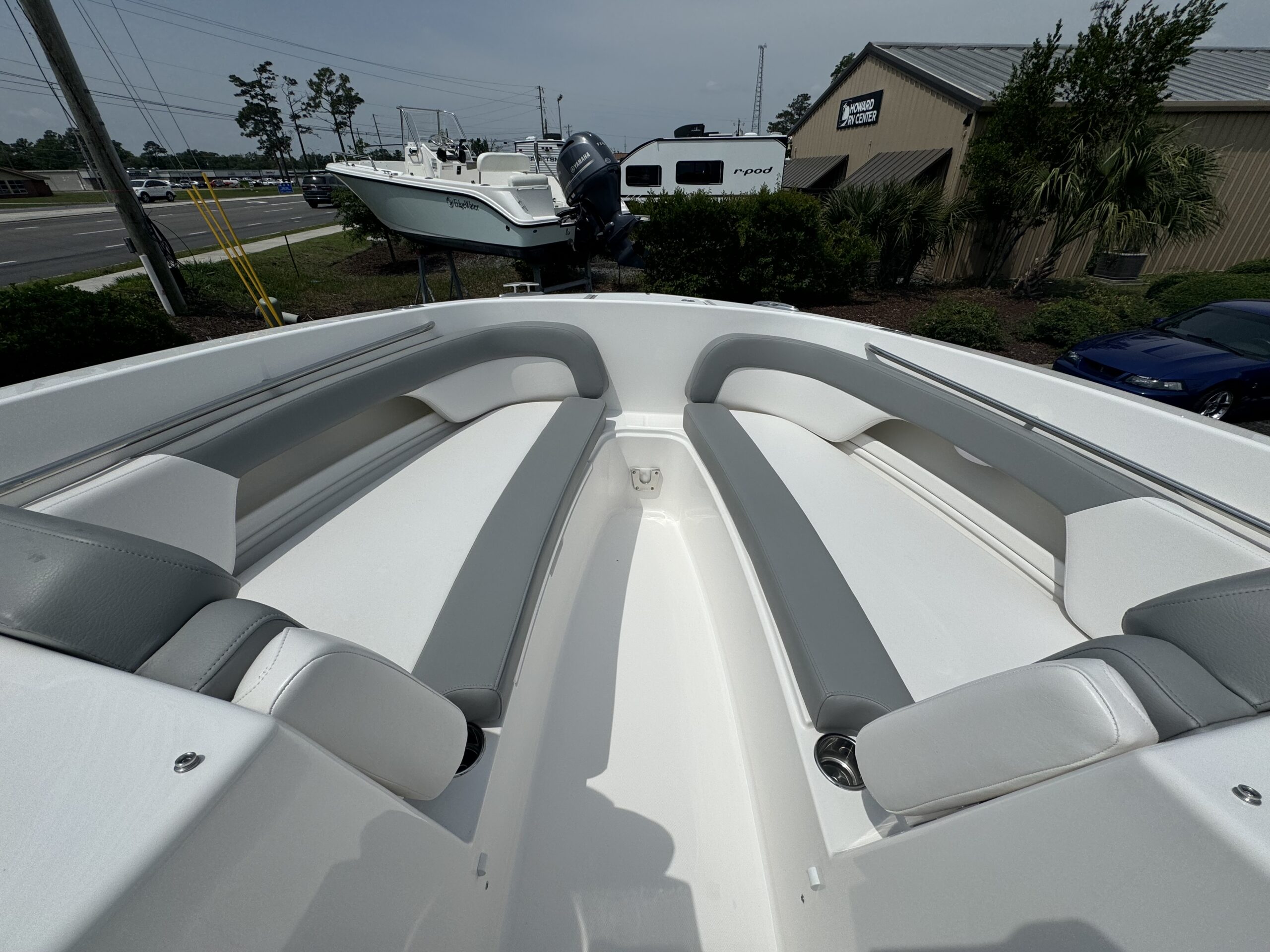

Bow Lounge Seating w/Armrests w/ Filler & Table Leg

Insulated Bow Fishbox/Coolers (3) w/ Overboard Drains

28 Gallon Transom Baitwell

Starboard Side Console Storage Compartment

In-Floor Storage/Ski Locker

Drink Holders at All Seat Locations

ANCHOR SYSTEM:

Bow Anchor Locker w/ Overboard Drain

SS Anchor Roller w/ 8″ SS Cleat & Anchor Retainer

Electric SS Anchor Windlass w/ 200′ Rode-15′ Chain

SPECS:

Length	26’5″ \| 8.2m
Beam	9’3″ \| 2.8m
Draft (Boat Only)	21″ \| 53.3cm
Boat Weight (approx)	5750lbs \| 2608kg
Weight Capacity	3250lbs \| 1474kg
Person Capacity	12
Person Weight	1980lbs \| 900kg
Fuel Capacity	163gal \| 617L
Transom Height	Twin-25”
Max Power	500hp \| 375kw
Cockpit Depth	27″ \| 69cm
Cockpit Area	61sq.ft. \| 5.7m²
Approx. Length Boat/Trailer	33′ \| 10m
Bridge Clearance w/out Top	6’4″ \| 1.93m
Bridge Clearance w/T-Top	8’0” \| 2.4m
Foam Floatation	Unsinkable/Level

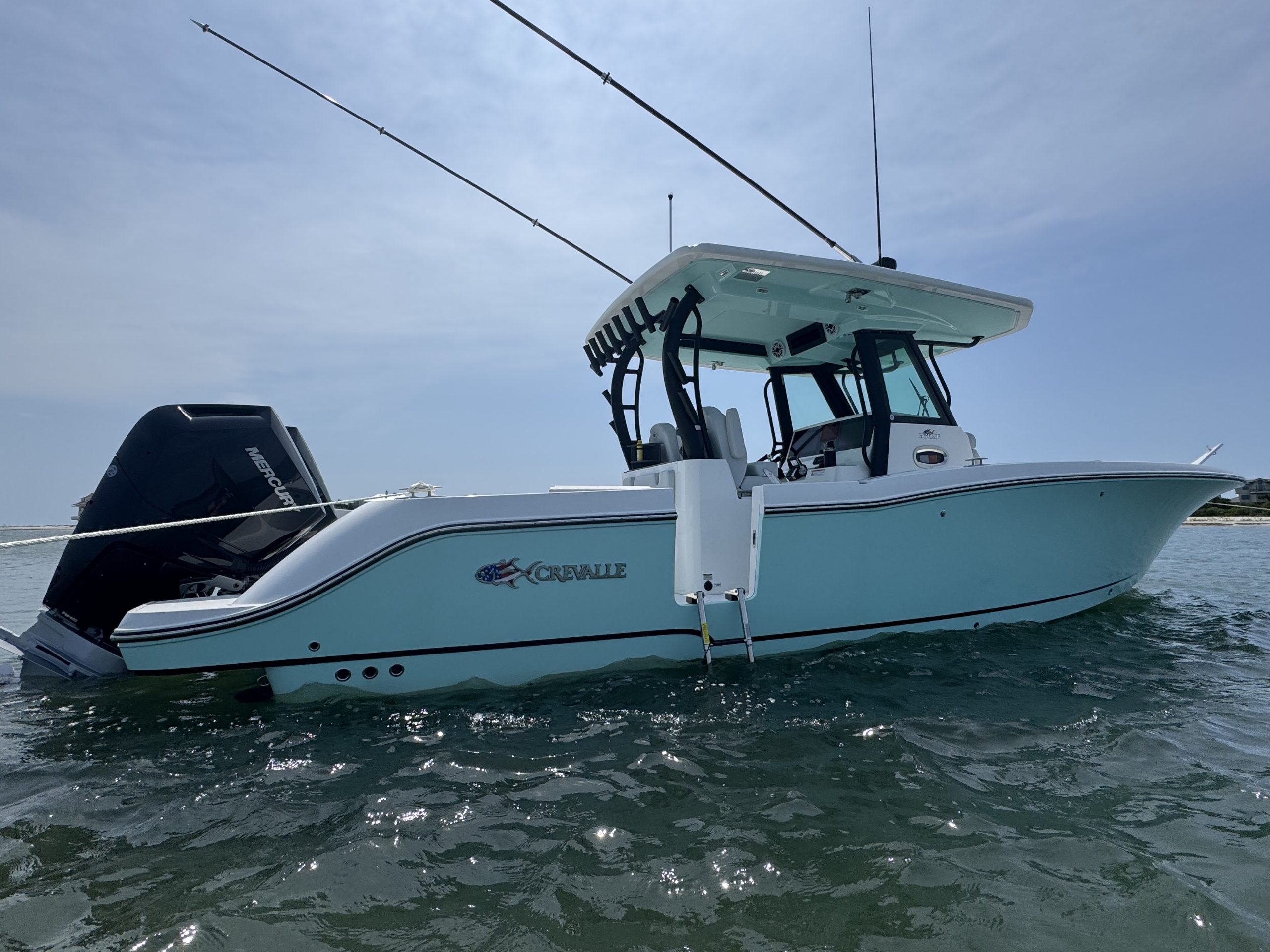

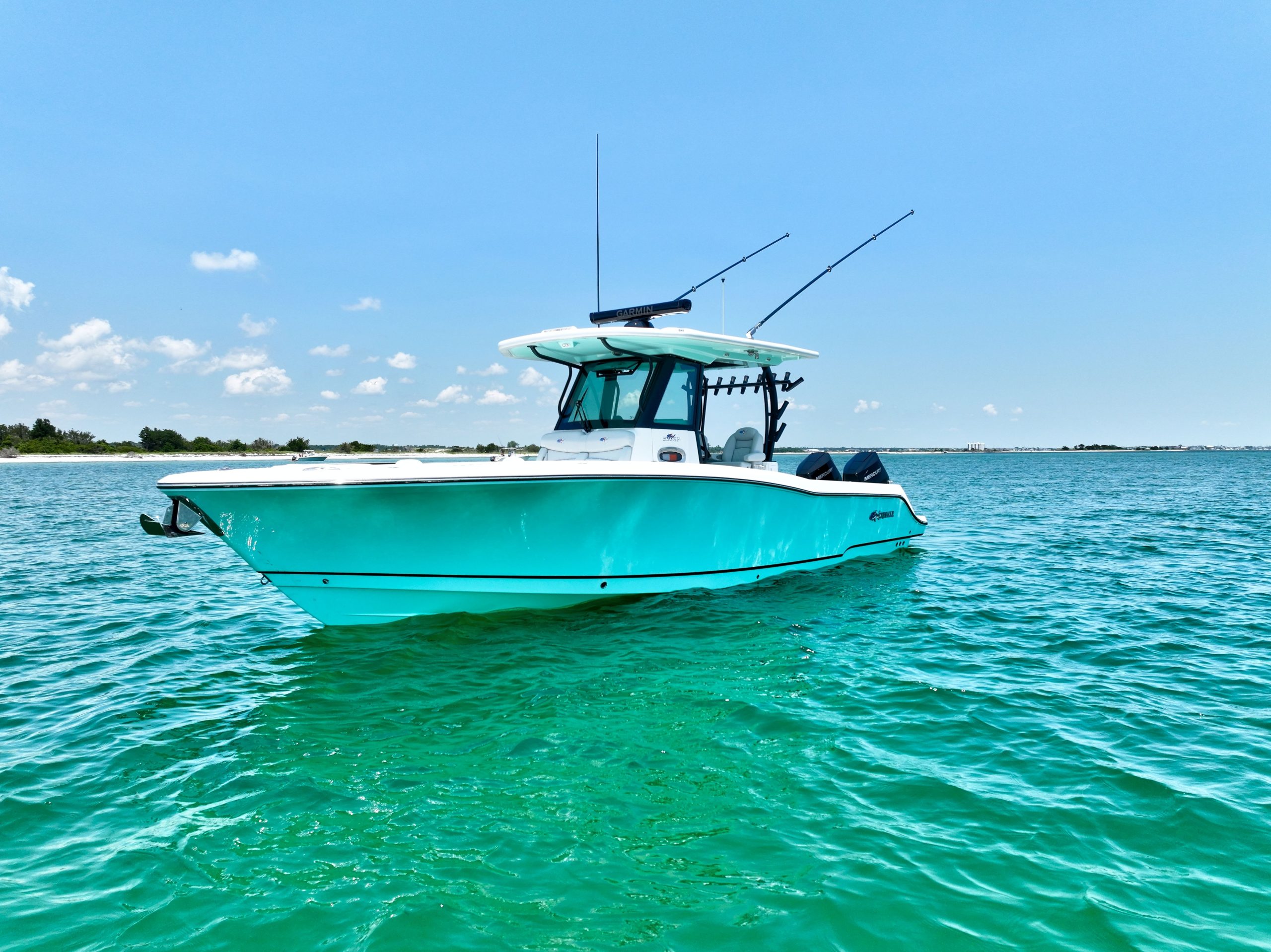

262 Center Console

By:: bellhartmarine

6
Aug

The 262CC is the perfect union of offshore performance and unsinkability of an EdgeWater with the seating, storage, amenities and versatility of an offshore boat. The 262CC will do anything you want to do on the water in an offshore boat while keeping you and your crew safe regardless of the conditions. With its deep-V hull, Single Piece Infusion® (SPI) construction, high-grade components, and the reliability of Yamaha four-stroke technology, the 262CCoperates in a class of all its own. Still, it’s an offshore boat that outperforms all comparable boats in any other category.

STANDARD FEATURES:

CONSTRUCTION:

Single Piece Infusion (SPI) Structural System

Limited Lifetime Structural Hull Warranty

NMMA, ABYC & CE Certified

Self Bailing Non-Skid Decks

NO WOOD All Composite Construction

Closed-Cell Foam Flotation

Variable Deadrise Deep V Hull

High Density Composite Transom

White Gelcoat Hull Color

HARDWARE:

Walk-thru Transom Door w/ SS Latch

Starboard Side Dive Door w/ Stainless Steel Latch

Folding Transom Boarding Ladder

Welded 316L Stainless Steel Recessed Bow Rail

Heavy Duty White Rubrail w/ Black Insert

Stainless Steel Gunwale Mounted Rod Holders (4)

Stainless Steel Bow and Stern Eyes (3)

10″ Stainless Steel Cleats (6)

Transom Mount Rod Holders (4)

Fire Extinguishers (2)

262cx Console & Top

CONSOLE & TOP:

White Powdercoated Fiberglass Hardtop w/ LED Spreader Lights (2) & Electronics Box

Port Console Storage Compartment

Starboard Walk-in Console

Freshwater Sink w/ Pull-out Shower & Corian® Countertop

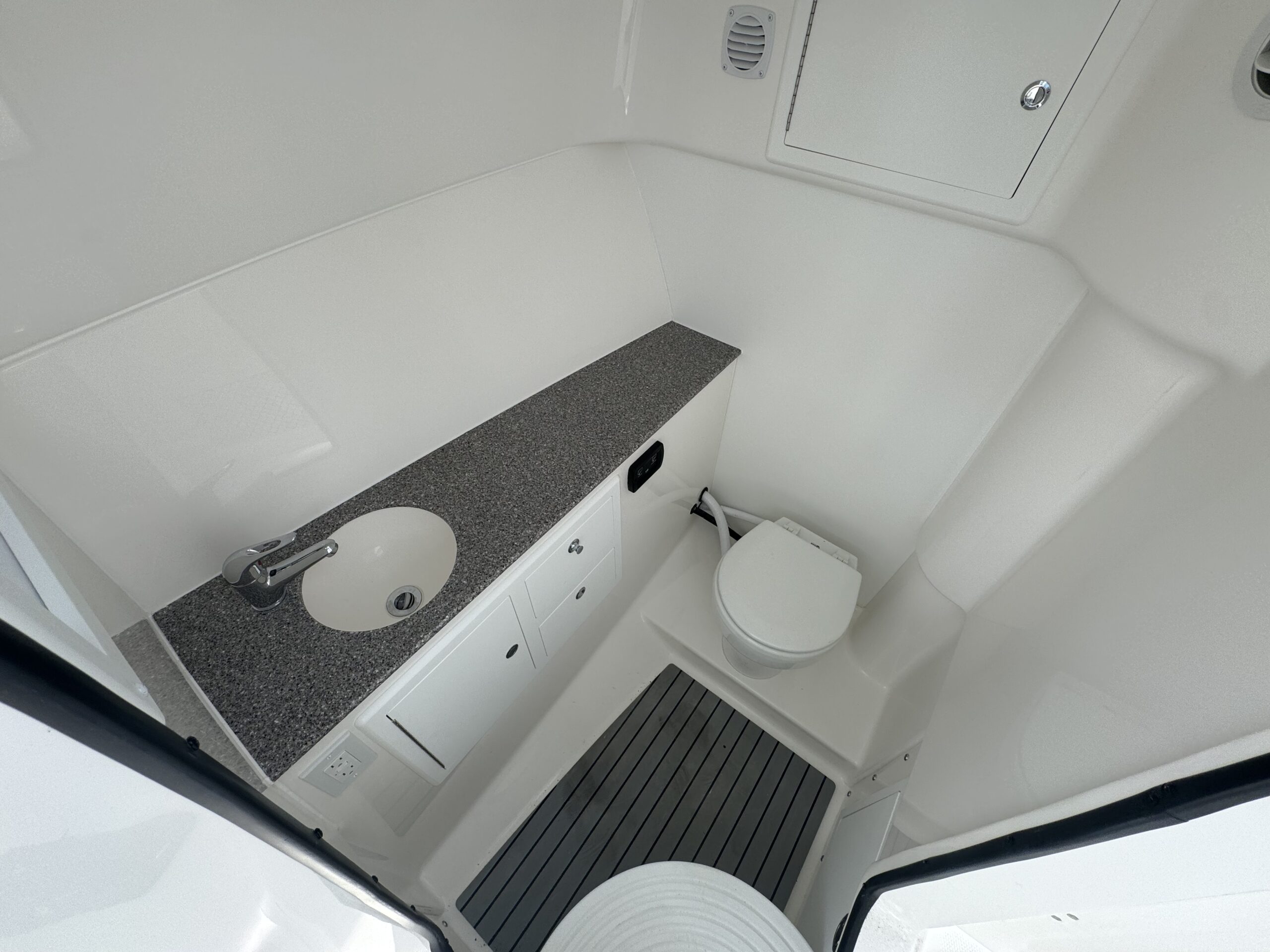

Electric Fresh Water Head w/19 Gallon Reservoir, Overboard Discharge & Pumpout

Wood Laminate Storage Cabinets in Head Compartment

Custom Tempered Glass Frameless Windshield

Deluxe Stainless Steel Steering Wheel w/ Power Knob

Hydraulic Seastar® Steering w/ Tilt Helm

Ritchie Compass

Under Gunwale Rod Racks

Stainless Steel Cockpit Toe Railsv

Stainless Steel Gunwale Mounted Cup Holder/Rod Holders (4)

Canvas Bow & Cockpit Covers

262cx Electrical System

ELECTRICAL SYSTEM:

LED Cockpit/Livewell Lighting

LED Navigation Lights

Underwater Blue LED Lights (2)

1250 GPH Auto/Manual Bilge Pump (1)

Console Switch Panel w/ Waterproof Switches, Circuit breakers & 12V Outlet

Waterproof Electrical Connectors & Tin-Plated Copper Wiring

Battery Selector Switch & Wiring for Dual Batteries

Transom Freshwater Shower

Raw Water Washdown Outlet

Lenco® Recessed Electric Trim Tabs w/ Indicator

SEATING / STORAGE:

Heavy-Duty Marine Grade UV Resistant Vinyl Upholstery

Folding Stern Seat w/ Backrest

Deluxe Adjustable Double Wide Helm Seat with Bolster

Starboard Side Prep Station w/ Fresh Water Sink, Insulated Storage & Sliding 50QT Premium Cooler

Port Side Ultra Lounger with Insulated Storage

Bow Lounge Seating w/Armrests w/ Filler & Table Leg

Insulated Bow Fishbox/Coolers (3) w/ Overboard Drains

28 Gallon Transom Baitwell

Starboard Side Console Storage Compartment

In-Floor Storage/Ski Locker

Drink Holders at All Seat Locations

ANCHOR SYSTEM:

Bow Anchor Locker w/ Overboard Drain

SS Anchor Roller w/ 8″ SS Cleat & Anchor Retainer

Electric SS Anchor Windlass w/ 200′ Rode-15′ Chain

SPECS:

Length	26’5″ \| 8.2m
Beam	9’3″ \| 2.8m
Draft (Boat Only)	21″ \| 53.3cm
Boat Weight (approx)	5750lbs \| 2608kg
Weight Capacity	3250lbs \| 1474kg
Person Capacity	12
Person Weight	1980lbs \| 900kg
Fuel Capacity	163gal \| 617L
Transom Height	Twin-25”
Max Power	500hp \| 375kw
Cockpit Depth	27″ \| 69cm
Cockpit Area	61sq.ft. \| 5.7m²
Approx. Length Boat/Trailer	33′ \| 10m
Bridge Clearance w/out Top	6’4″ \| 1.93m
Bridge Clearance w/T-Top	8’0” \| 2.4m
Foam Floatation	Unsinkable/Level

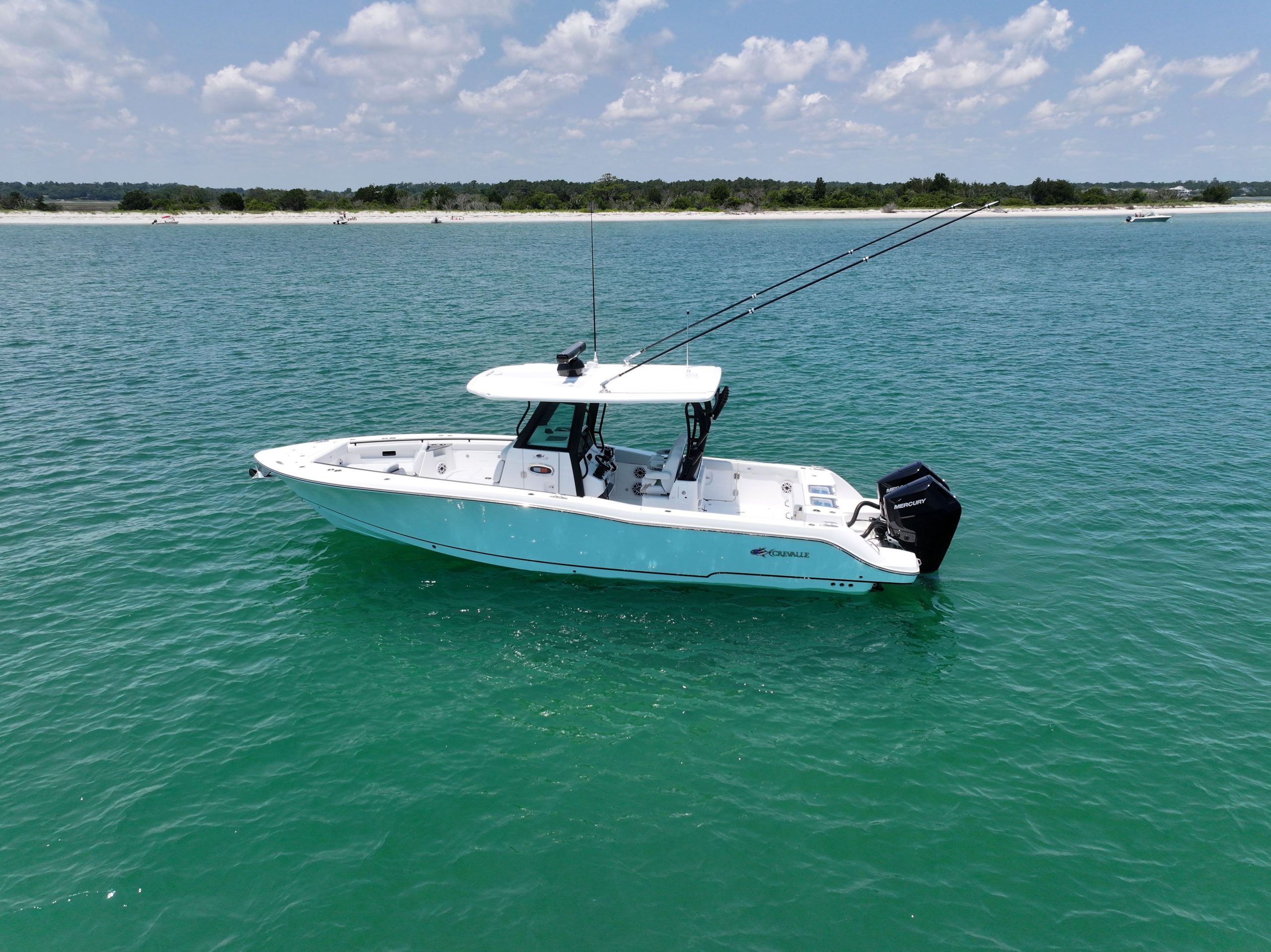

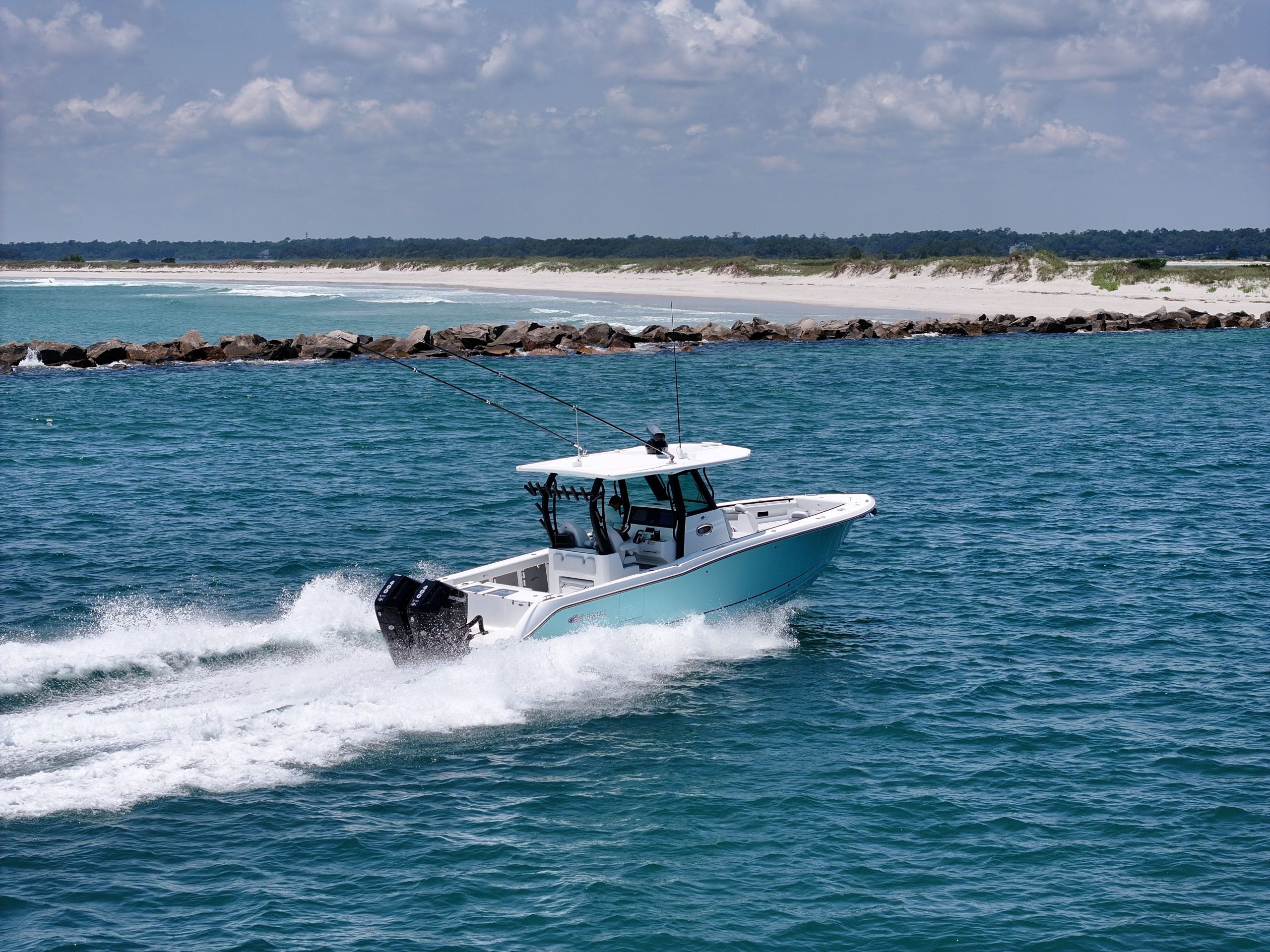

325 CENTER CONSOLE

By:: bellhartmarine

6
Aug

Where weight is critical for superior hull performance and fuel economy in a power boat, the 320CC out performs every boat in its class. Built using Single-Piece Infusion, or SPI, enabled us to create a lighter, more efficient, more environmentally sensitive power boat. It’s fishing machine that keeps the family in mind.

HERE ARE THE SPECS ON THE 325CC

Length	31’10” \| 9.7m
Beam	10’2″ \| 3.1m
Draft (Boat Only)	22″ \| 56cm
Person Capacity	12
Dry Weight (w/o Engines, approx.)	7700LBS
Person Weight	1980lbs \| 900kg
Fuel Capacity	300gal \| 1135L
Transom Height	Twin-25″
Max Power	700hp \| 525kw
Cockpit Depth	30″ \| 76cm
Cockpit Area	130sq.ft. \| 12m2
Approx. Length Boat/Trailer	40′ \| 12.1m

Single Piece Infusion (SPI) Structural System
Limited Lifetime Structural Hull Warranty
NMMA, ABYC & CE Certified
Self Bailing Non-Skid Decks
NO WOOD All Composite Construction
Closed-Cell Foam Flotation
Variable Deadrise Deep V Hull
High Density Composite Transom
White Gelcoat Hull Color

LED Cockpit/Livewell Navigation Lighting
LED Navigation Lights
2000 GPH Auto/Manual Bilge Pump Aft, High Water Alarm
1000 GPH Auto/Manual Bilge Pump Midship

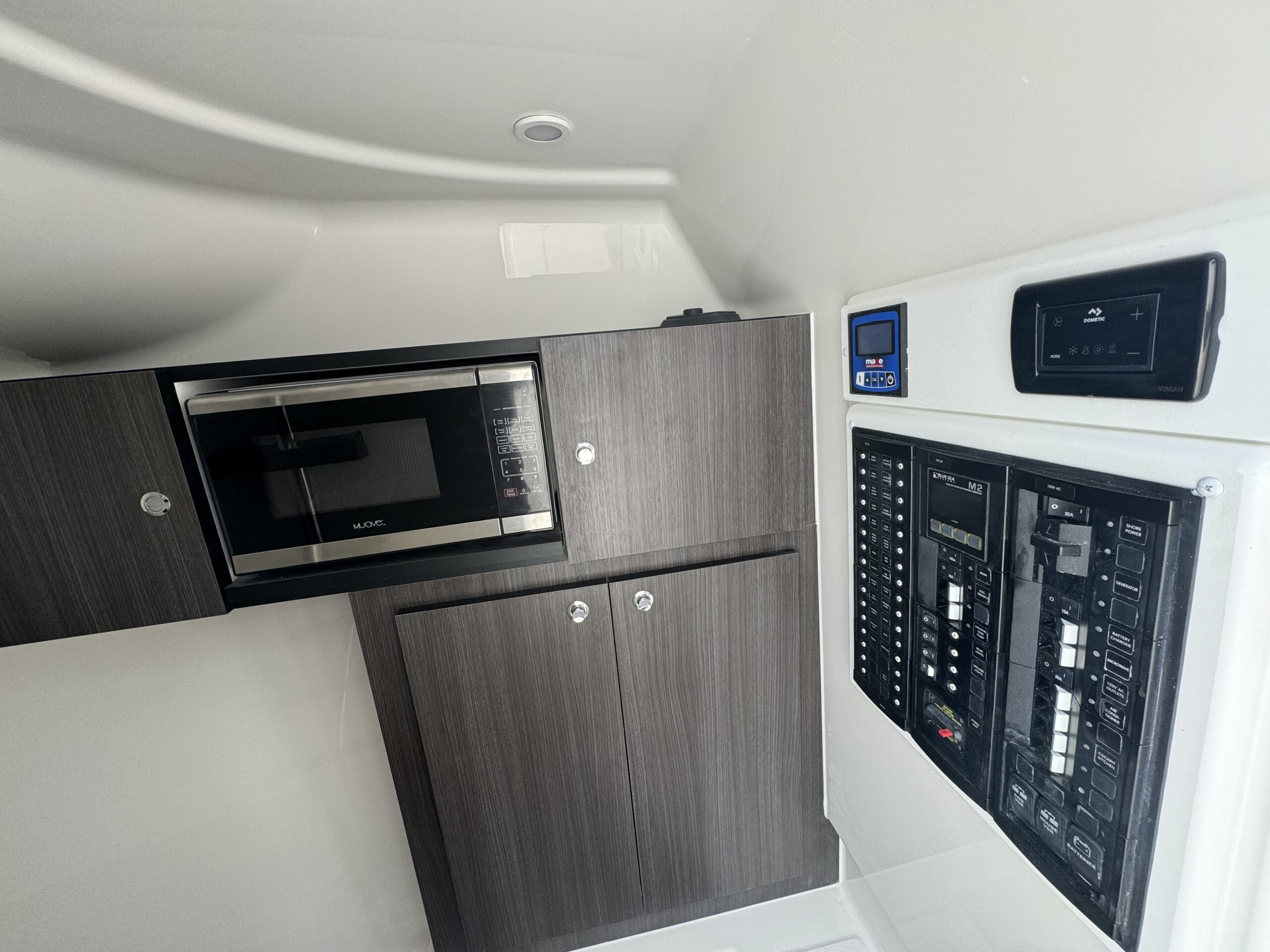

Console Interior Main Distribution Panel w/Battery Switches, Circuit Breakers, and Voltage Displays
Lenco® Dual Ram Recessed Trim Tabs w/ Indicators
Console Waterproof Switch Panels & 12V Outlet
Waterproof Connectors / Tin-Plated Copper Wiring
House/Engine Battery System w/ On-Off Switches, Battery Charger w/ Shore Power Inlet, Circuit Breaker & Cord

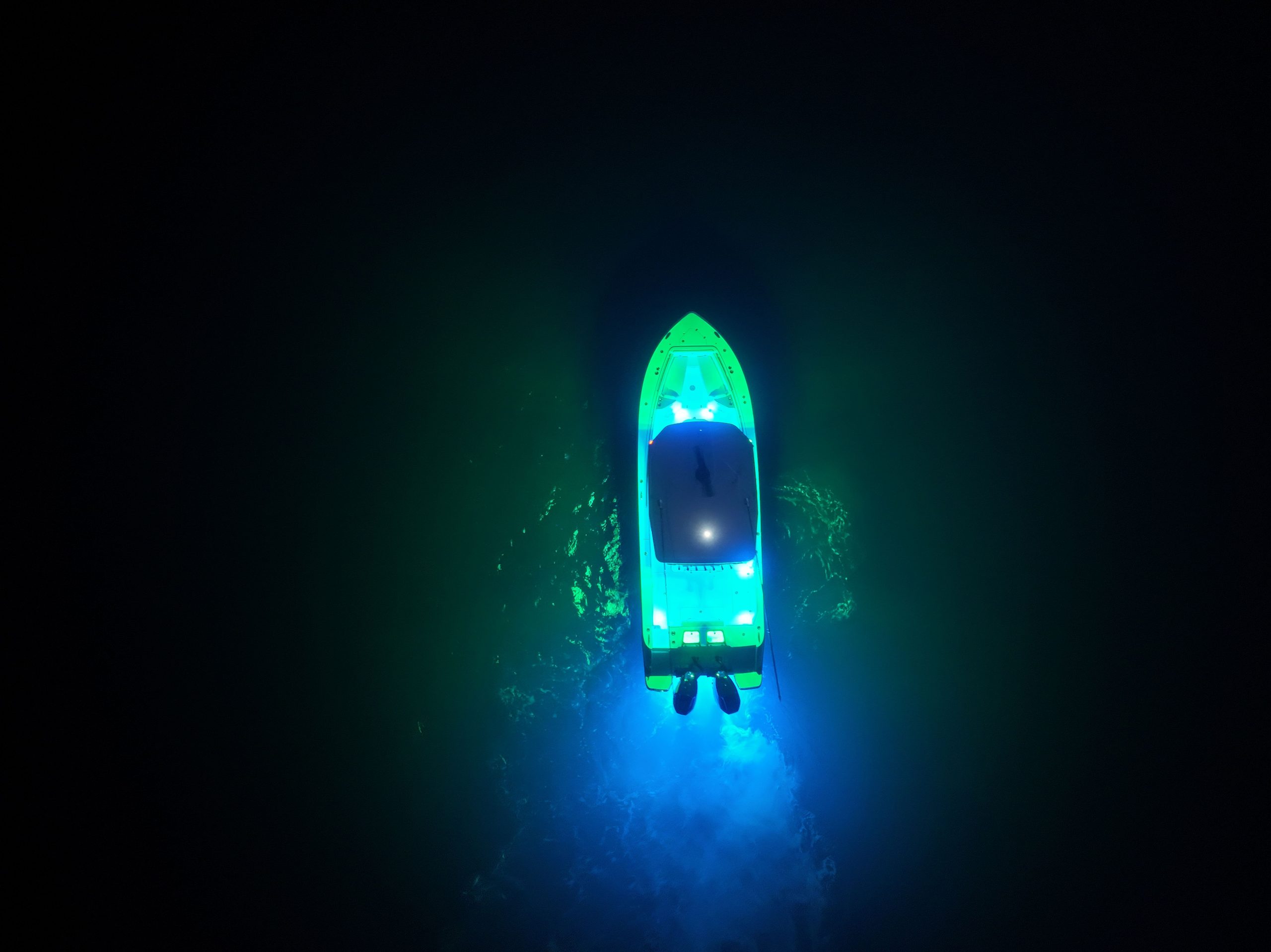

LED Blue Underwater Lights (2)
Fusion Stereo Package w/Bluetooth & JL Audio 7.7″ Speakers (4)
Console Sump Box

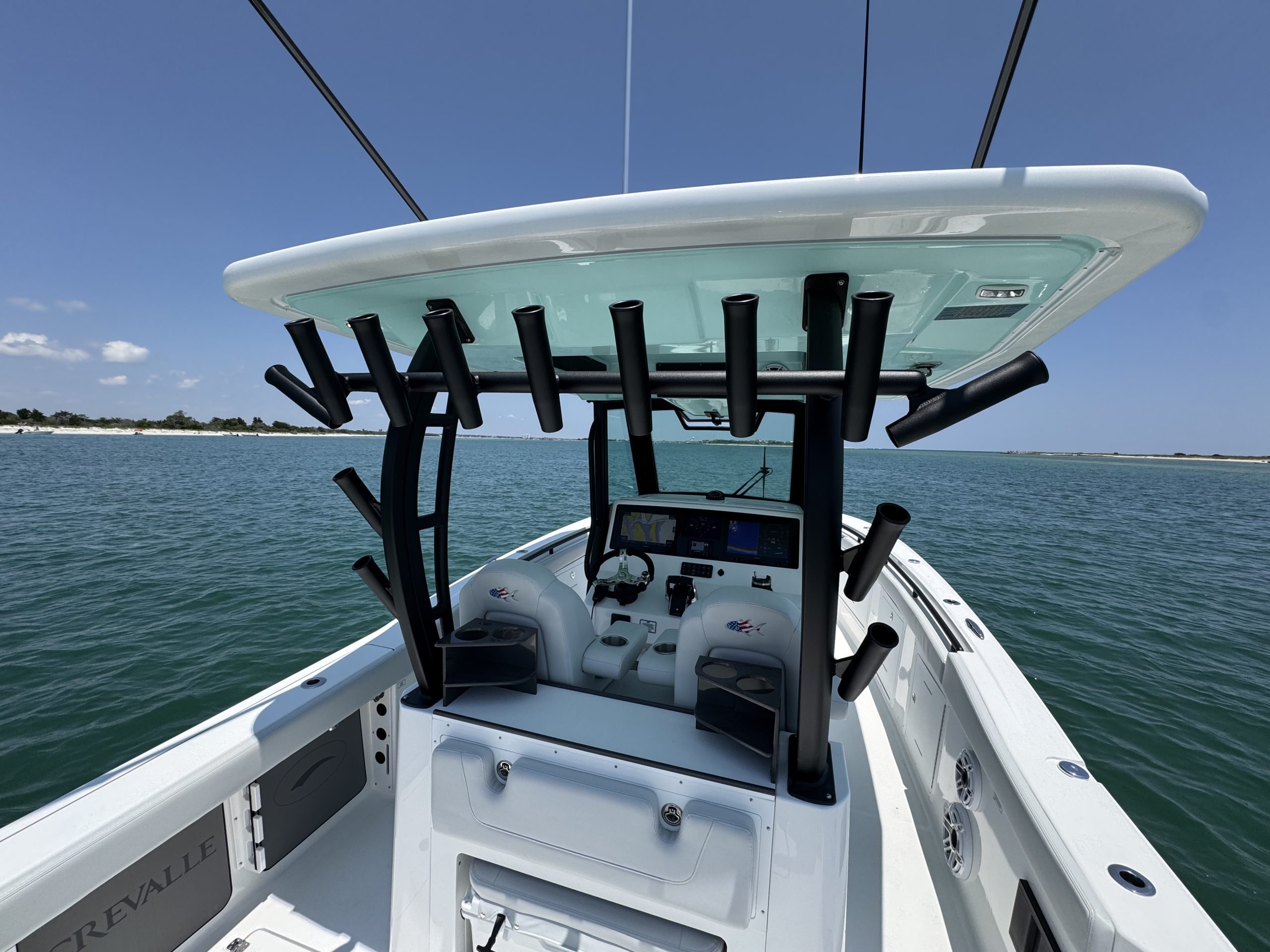

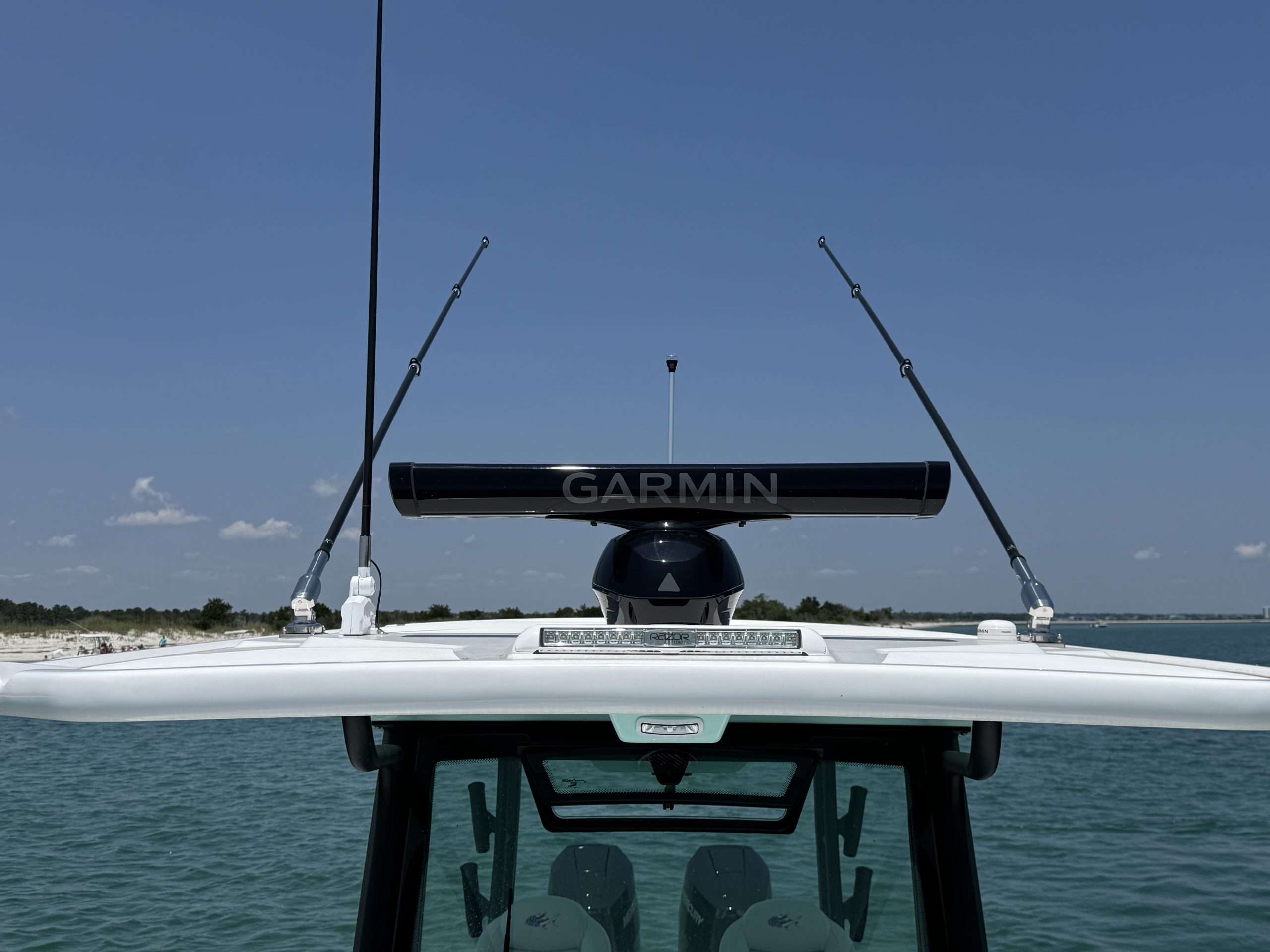

Fiberglass Hardtop w/Rod Holders (6), LED Spreader Lights (2), Helm Light, Instrument Box, & Skylight
Custom Clear Windshield w/ Aluminum Hardtop Support
White Powdercoating for Hardtop

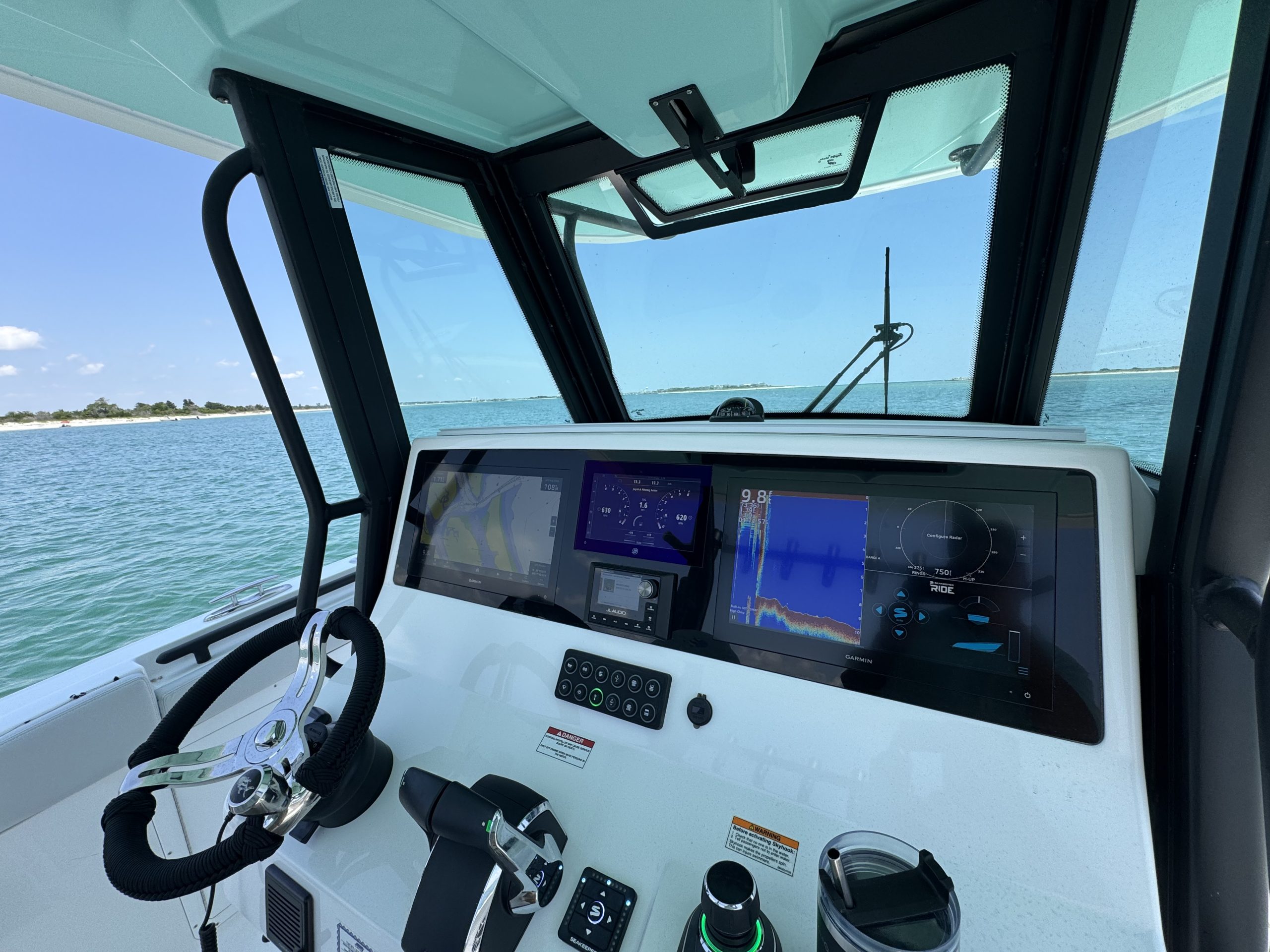

Yamaha Electronic Steering w/Tilt Helm
Deluxe Stainless Steel Steering Wheel w/Power Knob
Helm Stainless Steel Drink Holders
Ritchie Compass
Tip-Out Storage Bin
Console Interior Battery Compartment w/ Access Door
Removable Console Electronics Access Panel
Console Bilge Access Door
Walk-in Console W/Fiberglass Liner
Interior Console Storage Center w/Drawers
Folding Stainless Steel Coat Hangers (2)
Interior Console Fresh Water Sink w/Pull-out Shower
Electric Fresh Water Head w/Holding Tank, Overboard Discharge & Pumpout

325CC

Yamaha Twin F300’S

Horsepower300 x 3

Displacement4.2L x2

Weight (LBS)56

Gear Ratio1.75:1

Mounting Height2-2

RPM	MPH	GPH	MPG
1000	6.1	2.4	2.54
1500	8.6	4.2	2.05
2000	10.0	7.2	1.39
2500	16.4	10.6	1.55
3000	25.4	13.6	1.87
3500	31.1	17.0	1.83
4000	36.7	22.7	1.62
4500	42.5	29.8	1.43
5000	47.4	37.4	1.27
5500	52.0	45.1	1.15
6000	57.0	53.1	1.07

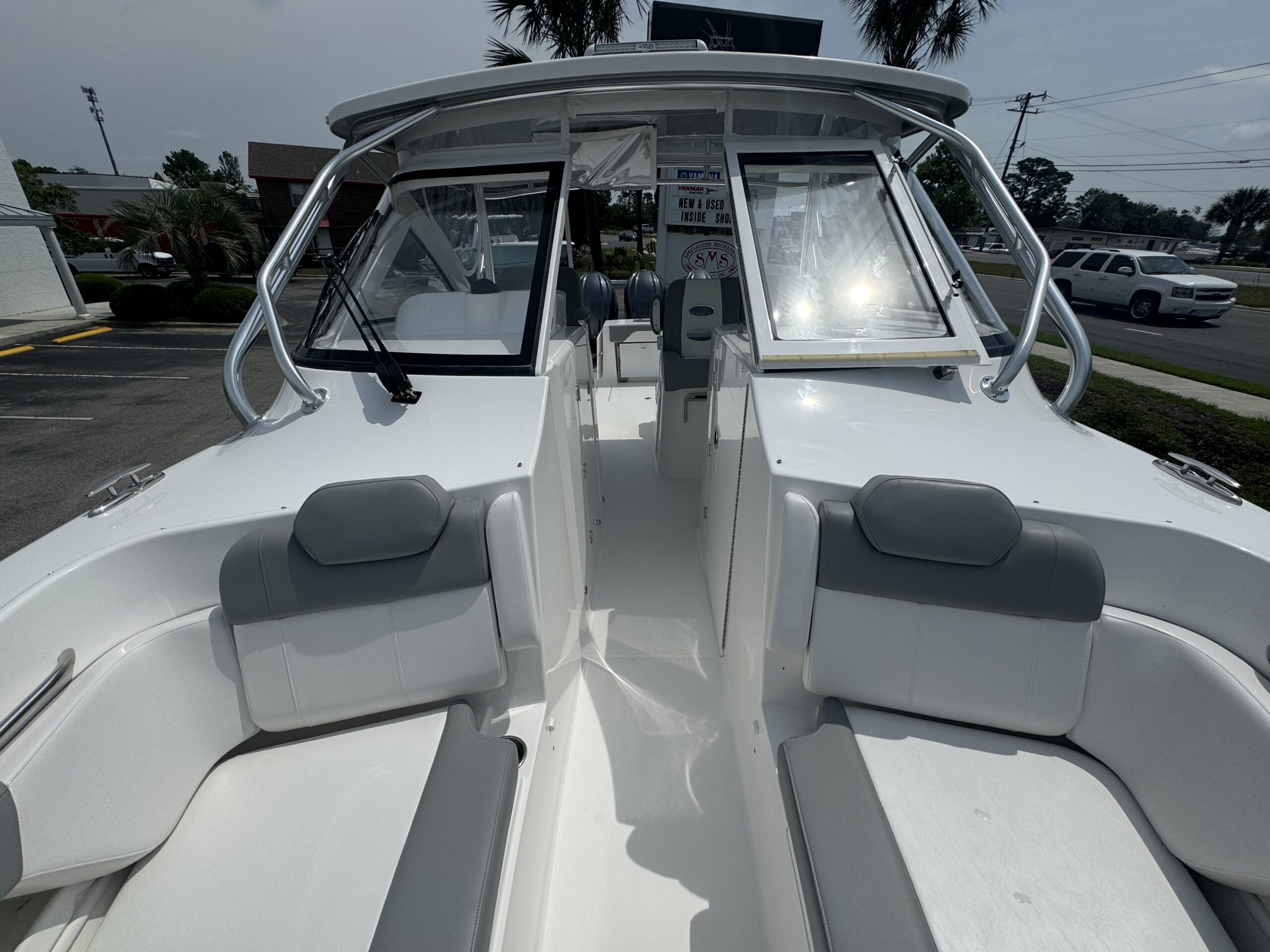

262CX DUAL CONSOLE

By:: bellhartmarine

6
Aug

The 262CX Crossover is the perfect union of offshore performance and unsinkability of an EdgeWater with the seating, storage, amenities and versatility of an offshore boat. The 262cx will do anything you want to do on the water in an offshore boat while keeping you and your crew safe regardless of the conditions. With its deep-V hull, Single Piece Infusion® (SPI) construction, high-grade components, and the reliability of Yamaha four-stroke technology, the 262cx operates in a class of all its own. Still, it’s an offshore boat that outperforms all comparable boats in any other category.

STANDARD FEATURES:

CONSTRUCTION:

Single Piece Infusion (SPI) Structural System

Limited Lifetime Structural Hull Warranty

NMMA, ABYC & CE Certified

Self Bailing Non-Skid Decks

NO WOOD All Composite Construction

Closed-Cell Foam Flotation

Variable Deadrise Deep V Hull

High Density Composite Transom

White Gelcoat Hull Color

262cx Hardware

HARDWARE:

Walk-thru Transom Door w/ SS Latch

Starboard Side Dive Door w/ Stainless Steel Latch

Folding Transom Boarding Ladder

Welded 316L Stainless Steel Recessed Bow Rail

Heavy Duty White Rubrail w/ Black Insert

Stainless Steel Gunwale Mounted Rod Holders (4)

Stainless Steel Bow and Stern Eyes (3)

10″ Stainless Steel Cleats (6)

Transom Mount Rod Holders (4)

Fire Extinguishers (2)

262cx Console & Top

CONSOLE & TOP:

White Powdercoated Fiberglass Hardtop w/ LED Spreader Lights (2) & Electronics Box

Port Console Storage Compartment

Starboard Walk-in Console

Freshwater Sink w/ Pull-out Shower & Corian® Countertop

Electric Fresh Water Head w/19 Gallon Reservoir, Overboard Discharge & Pumpout

Wood Laminate Storage Cabinets in Head Compartment

Custom Tempered Glass Frameless Windshield

Deluxe Stainless Steel Steering Wheel w/ Power Knob

Hydraulic Seastar® Steering w/ Tilt Helm

Ritchie Compass

Under Gunwale Rod Racks

Stainless Steel Cockpit Toe Railsv

Stainless Steel Gunwale Mounted Cup Holder/Rod Holders (4)

Canvas Bow & Cockpit Covers

262cx Electrical System

ELECTRICAL SYSTEM:

LED Cockpit/Livewell Lighting

LED Navigation Lights

Underwater Blue LED Lights (2)

1250 GPH Auto/Manual Bilge Pump (1)

Console Switch Panel w/ Waterproof Switches, Circuit breakers & 12V Outlet

Waterproof Electrical Connectors & Tin-Plated Copper Wiring

Battery Selector Switch & Wiring for Dual Batteries

Transom Freshwater Shower

Raw Water Washdown Outlet

Lenco® Recessed Electric Trim Tabs w/ Indicators

262cx Seating & Storage

SEATING / STORAGE:

Heavy-Duty Marine Grade UV Resistant Vinyl Upholstery

Folding Stern Seat w/ Backrest

Deluxe Adjustable Double Wide Helm Seat with Bolster

Starboard Side Prep Station w/ Fresh Water Sink, Insulated Storage & Sliding 50QT Premium Cooler

Port Side Ultra Lounger with Insulated Storage

Bow Lounge Seating w/Armrests w/ Filler & Table Leg

Insulated Bow Fishbox/Coolers (3) w/ Overboard Drains

28 Gallon Transom Baitwell

Starboard Side Console Storage Compartment

In-Floor Storage/Ski Locker

Drink Holders at All Seat Locations

ANCHOR SYSTEM:

Bow Anchor Locker w/ Overboard Drain

SS Anchor Roller w/ 8″ SS Cleat & Anchor Retainer

Electric SS Anchor Windlass w/ 200′ Rode-15′ Chain

SPECS:

Length	26’5″ \| 8.2m
Beam	9’3″ \| 2.8m
Draft (Boat Only)	21″ \| 53.3cm
Boat Weight (approx)	5750lbs \| 2608kg
Weight Capacity	3250lbs \| 1474kg
Person Capacity	12
Person Weight	1980lbs \| 900kg
Fuel Capacity	163gal \| 617L
Transom Height	Twin-25”
Max Power	500hp \| 375kw
Cockpit Depth	27″ \| 69cm
Cockpit Area	61sq.ft. \| 5.7m²
Approx. Length Boat/Trailer	33′ \| 10m
Bridge Clearance w/out Top	6’4″ \| 1.93m
Bridge Clearance w/T-Top	8’0” \| 2.4m
Foam Floatation	Unsinkable/Level

MONTEREY 235SS

By:: bellhartmarine

20
May

SPECIFICATIONS

Spec	US Unit	Metric Unit	Description
Beam	8’6″	2.59M	Width of hull at widest section including rubrail
Bridge Clearance W/Tower	7’3″	2.2M	Height from water to highest point on tower, normal load
Deadrise	20°	20°	Angle of keel measured at transom
Draft – Engine Down	32″	81.3CM	Depth of hull to bottom of engine, trimmed down
Draft -Engine Up	16″	40.6CM	Depth of hull to lowest point, Engine trimmed up
Dry Weight	3650LBS	1655KG	Mass of boat with engine(s) and batteries, no fuel, water, waste, or gear
Fuel Capacity	52GAL	196.8L	Capacity of fuel tank in gallons/liters
LOA W/Engines	26’3″	8.00M	Length Overall With Engines
LOA W/Swim Platform	23’5″	7.14M	Length Overall, including add-on swim platform, not including bow rail or anchor roller
Max Persons	12 (US)	11 (CE)	Maximum Rated Persons Capacity
Max Persons W/ Gear Weight & Motor	2897LBS	1388KG	Maximum combined capacity of people and gear & Motor that can be safely carried in pounds/kilograms
Max Persons Weight	1980LBS	825KG	Maximum capacity of people that can be safely carried in pounds/kilograms
Max Power	300HP	224KW	Maximum horsepower for safe operation
Water Capacity	10GAL	37.9L	Capacity of water tank in gallons/liters

*Consult your local dealer for catalyst engine requirements for your region.

262CX DUAL CONSOLE

By:: bellhartmarine

20
May

The 262CX Crossover is the perfect union of offshore performance and unsinkability of an EdgeWater with the seating, storage, amenities and versatility of an offshore boat. The 262cx will do anything you want to do on the water in an offshore boat while keeping you and your crew safe regardless of the conditions. With its deep-V hull, Single Piece Infusion® (SPI) construction, high-grade components, and the reliability of Yamaha four-stroke technology, the 262cx operates in a class of all its own. Still, it’s an offshore boat that outperforms all comparable boats in any other category.

STANDARD FEATURES:

CONSTRUCTION:

Single Piece Infusion (SPI) Structural System

Limited Lifetime Structural Hull Warranty

NMMA, ABYC & CE Certified

Self Bailing Non-Skid Decks

NO WOOD All Composite Construction

Closed-Cell Foam Flotation

Variable Deadrise Deep V Hull

High Density Composite Transom

White Gelcoat Hull Color

262cx Hardware

HARDWARE:

Walk-thru Transom Door w/ SS Latch

Starboard Side Dive Door w/ Stainless Steel Latch

Folding Transom Boarding Ladder

Welded 316L Stainless Steel Recessed Bow Rail

Heavy Duty White Rubrail w/ Black Insert

Stainless Steel Gunwale Mounted Rod Holders (4)

Stainless Steel Bow and Stern Eyes (3)

10″ Stainless Steel Cleats (6)

Transom Mount Rod Holders (4)

Fire Extinguishers (2)

262cx Console & Top

CONSOLE & TOP:

White Powdercoated Fiberglass Hardtop w/ LED Spreader Lights (2) & Electronics Box

Port Console Storage Compartment

Starboard Walk-in Console

Freshwater Sink w/ Pull-out Shower & Corian® Countertop

Electric Fresh Water Head w/19 Gallon Reservoir, Overboard Discharge & Pumpout

Wood Laminate Storage Cabinets in Head Compartment

Custom Tempered Glass Frameless Windshield

Deluxe Stainless Steel Steering Wheel w/ Power Knob

Hydraulic Seastar® Steering w/ Tilt Helm

Ritchie Compass

Under Gunwale Rod Racks

Stainless Steel Cockpit Toe Railsv

Stainless Steel Gunwale Mounted Cup Holder/Rod Holders (4)

Canvas Bow & Cockpit Covers

262cx Electrical System

ELECTRICAL SYSTEM:

LED Cockpit/Livewell Lighting

LED Navigation Lights

Underwater Blue LED Lights (2)

1250 GPH Auto/Manual Bilge Pump (1)

Console Switch Panel w/ Waterproof Switches, Circuit breakers & 12V Outlet

Waterproof Electrical Connectors & Tin-Plated Copper Wiring

Battery Selector Switch & Wiring for Dual Batteries

Transom Freshwater Shower

Raw Water Washdown Outlet

Lenco® Recessed Electric Trim Tabs w/ Indicators

262cx Seating & Storage

SEATING / STORAGE:

Heavy-Duty Marine Grade UV Resistant Vinyl Upholstery

Folding Stern Seat w/ Backrest

Deluxe Adjustable Double Wide Helm Seat with Bolster

Starboard Side Prep Station w/ Fresh Water Sink, Insulated Storage & Sliding 50QT Premium Cooler

Port Side Ultra Lounger with Insulated Storage

Bow Lounge Seating w/Armrests w/ Filler & Table Leg

Insulated Bow Fishbox/Coolers (3) w/ Overboard Drains

28 Gallon Transom Baitwell

Starboard Side Console Storage Compartment

In-Floor Storage/Ski Locker

Drink Holders at All Seat Locations

ANCHOR SYSTEM:

Bow Anchor Locker w/ Overboard Drain

SS Anchor Roller w/ 8″ SS Cleat & Anchor Retainer

Electric SS Anchor Windlass w/ 200′ Rode-15′ Chain

SPECS:

Length	26’5″ \| 8.2m
Beam	9’3″ \| 2.8m
Draft (Boat Only)	21″ \| 53.3cm
Boat Weight (approx)	5750lbs \| 2608kg
Weight Capacity	3250lbs \| 1474kg
Person Capacity	12
Person Weight	1980lbs \| 900kg
Fuel Capacity	163gal \| 617L
Transom Height	Twin-25”
Max Power	500hp \| 375kw
Cockpit Depth	27″ \| 69cm
Cockpit Area	61sq.ft. \| 5.7m²
Approx. Length Boat/Trailer	33′ \| 10m
Bridge Clearance w/out Top	6’4″ \| 1.93m
Bridge Clearance w/T-Top	8’0” \| 2.4m
Foam Floatation	Unsinkable/Level

325 CENTER CONSOLE

By:: bellhartmarine

20
May

Where weight is critical for superior hull performance and fuel economy in a power boat, the 320CC out performs every boat in its class. Built using Single-Piece Infusion, or SPI, enabled us to create a lighter, more efficient, more environmentally sensitive power boat. It’s fishing machine that keeps the family in mind.

HERE ARE THE SPECS ON THE 325CC

Length	31’10” \| 9.7m
Beam	10’2″ \| 3.1m
Draft (Boat Only)	22″ \| 56cm
Person Capacity	12
Dry Weight (w/o Engines, approx.)	7700LBS
Person Weight	1980lbs \| 900kg
Fuel Capacity	300gal \| 1135L
Transom Height	Twin-25″
Max Power	700hp \| 525kw
Cockpit Depth	30″ \| 76cm
Cockpit Area	130sq.ft. \| 12m2
Approx. Length Boat/Trailer	40′ \| 12.1m

Single Piece Infusion (SPI) Structural System
Limited Lifetime Structural Hull Warranty
NMMA, ABYC & CE Certified
Self Bailing Non-Skid Decks
NO WOOD All Composite Construction
Closed-Cell Foam Flotation
Variable Deadrise Deep V Hull
High Density Composite Transom
White Gelcoat Hull Color

LED Cockpit/Livewell Navigation Lighting
LED Navigation Lights
2000 GPH Auto/Manual Bilge Pump Aft, High Water Alarm
1000 GPH Auto/Manual Bilge Pump Midship
Console Interior Main Distribution Panel w/Battery Switches, Circuit Breakers, and Voltage Displays
Lenco® Dual Ram Recessed Trim Tabs w/ Indicators
Console Waterproof Switch Panels & 12V Outlet
Waterproof Connectors / Tin-Plated Copper Wiring
House/Engine Battery System w/ On-Off Switches, Battery Charger w/ Shore Power Inlet, Circuit Breaker & Cord
LED Blue Underwater Lights (2)
Fusion Stereo Package w/Bluetooth & JL Audio 7.7″ Speakers (4)
Console Sump Box

Fiberglass Hardtop w/Rod Holders (6), LED Spreader Lights (2), Helm Light, Instrument Box, & Skylight
Custom Clear Windshield w/ Aluminum Hardtop Support
White Powdercoating for Hardtop
Yamaha Electronic Steering w/Tilt Helm
Deluxe Stainless Steel Steering Wheel w/Power Knob
Helm Stainless Steel Drink Holders
Ritchie Compass
Tip-Out Storage Bin
Console Interior Battery Compartment w/ Access Door
Removable Console Electronics Access Panel
Console Bilge Access Door
Walk-in Console W/Fiberglass Liner
Interior Console Storage Center w/Drawers
Folding Stainless Steel Coat Hangers (2)
Interior Console Fresh Water Sink w/Pull-out Shower
Electric Fresh Water Head w/Holding Tank, Overboard Discharge & Pumpout

325CC

Yamaha Twin F300’S

Horsepower300 x 3

Displacement4.2L x2

Weight (LBS)56

Gear Ratio1.75:1

Mounting Height2-2

RPM	MPH	GPH	MPG
1000	6.1	2.4	2.54
1500	8.6	4.2	2.05
2000	10.0	7.2	1.39
2500	16.4	10.6	1.55
3000	25.4	13.6	1.87
3500	31.1	17.0	1.83
4000	36.7	22.7	1.62
4500	42.5	29.8	1.43
5000	47.4	37.4	1.27
5500	52.0	45.1	1.15
6000	57.0	53.1	1.07

262 Center Console

By:: bellhartmarine

21
Dec

The 262CC is the perfect union of offshore performance and unsinkability of an EdgeWater with the seating, storage, amenities and versatility of an offshore boat. The 262CC will do anything you want to do on the water in an offshore boat while keeping you and your crew safe regardless of the conditions. With its deep-V hull, Single Piece Infusion® (SPI) construction, high-grade components, and the reliability of Yamaha four-stroke technology, the 262CCoperates in a class of all its own. Still, it’s an offshore boat that outperforms all comparable boats in any other category.

STANDARD FEATURES:

CONSTRUCTION:

Single Piece Infusion (SPI) Structural System

Limited Lifetime Structural Hull Warranty

NMMA, ABYC & CE Certified

Self Bailing Non-Skid Decks

NO WOOD All Composite Construction

Closed-Cell Foam Flotation

Variable Deadrise Deep V Hull

High Density Composite Transom

White Gelcoat Hull Color

HARDWARE:

Walk-thru Transom Door w/ SS Latch

Starboard Side Dive Door w/ Stainless Steel Latch

Folding Transom Boarding Ladder

Welded 316L Stainless Steel Recessed Bow Rail

Heavy Duty White Rubrail w/ Black Insert

Stainless Steel Gunwale Mounted Rod Holders (4)

Stainless Steel Bow and Stern Eyes (3)

10″ Stainless Steel Cleats (6)

Transom Mount Rod Holders (4)

Fire Extinguishers (2)

262cx Console & Top

CONSOLE & TOP:

White Powdercoated Fiberglass Hardtop w/ LED Spreader Lights (2) & Electronics Box

Port Console Storage Compartment

Starboard Walk-in Console

Freshwater Sink w/ Pull-out Shower & Corian® Countertop

Electric Fresh Water Head w/19 Gallon Reservoir, Overboard Discharge & Pumpout

Wood Laminate Storage Cabinets in Head Compartment

Custom Tempered Glass Frameless Windshield

Deluxe Stainless Steel Steering Wheel w/ Power Knob

Hydraulic Seastar® Steering w/ Tilt Helm

Ritchie Compass

Under Gunwale Rod Racks

Stainless Steel Cockpit Toe Railsv

Stainless Steel Gunwale Mounted Cup Holder/Rod Holders (4)

Canvas Bow & Cockpit Covers

262cx Electrical System

ELECTRICAL SYSTEM:

LED Cockpit/Livewell Lighting

LED Navigation Lights

Underwater Blue LED Lights (2)

1250 GPH Auto/Manual Bilge Pump (1)

Console Switch Panel w/ Waterproof Switches, Circuit breakers & 12V Outlet

Waterproof Electrical Connectors & Tin-Plated Copper Wiring

Battery Selector Switch & Wiring for Dual Batteries

Transom Freshwater Shower

Raw Water Washdown Outlet

Lenco® Recessed Electric Trim Tabs w/ Indicator

SEATING / STORAGE:

Heavy-Duty Marine Grade UV Resistant Vinyl Upholstery

Folding Stern Seat w/ Backrest

Deluxe Adjustable Double Wide Helm Seat with Bolster

Starboard Side Prep Station w/ Fresh Water Sink, Insulated Storage & Sliding 50QT Premium Cooler

Port Side Ultra Lounger with Insulated Storage

Bow Lounge Seating w/Armrests w/ Filler & Table Leg

Insulated Bow Fishbox/Coolers (3) w/ Overboard Drains

28 Gallon Transom Baitwell

Starboard Side Console Storage Compartment

In-Floor Storage/Ski Locker

Drink Holders at All Seat Locations

ANCHOR SYSTEM:

Bow Anchor Locker w/ Overboard Drain

SS Anchor Roller w/ 8″ SS Cleat & Anchor Retainer

Electric SS Anchor Windlass w/ 200′ Rode-15′ Chain

SPECS:

Length	26’5″ \| 8.2m
Beam	9’3″ \| 2.8m
Draft (Boat Only)	21″ \| 53.3cm
Boat Weight (approx)	5750lbs \| 2608kg
Weight Capacity	3250lbs \| 1474kg
Person Capacity	12
Person Weight	1980lbs \| 900kg
Fuel Capacity	163gal \| 617L
Transom Height	Twin-25”
Max Power	500hp \| 375kw
Cockpit Depth	27″ \| 69cm
Cockpit Area	61sq.ft. \| 5.7m²
Approx. Length Boat/Trailer	33′ \| 10m
Bridge Clearance w/out Top	6’4″ \| 1.93m
Bridge Clearance w/T-Top	8’0” \| 2.4m
Foam Floatation	Unsinkable/Level

248CX DUAL CONSOLE

By:: bellhartmarine

4
Oct

Sit Comfortably

The 248CX runs the gamut on luxurious seating with plush cushions and marine grade materials. The combination of the bow lounging, cockpit seating and transom folding seat bring home comforts to the water.

248cx Sit Comfortably

248CX Specifications

Length 24’6″ | 7.5M

Beam 8’6″ | 2.6M

Draft (Boat Only) 21″ | 53.3CM

Dry Weight (W/o Engines, Approx.) 4100LBS

Person Capacity 11

Person Weight 1815LBS | 823.3KG

Fuel Capacity 120GAL | 454L

Transom Height SINGLE-30”

Max Power 350HP | 261KW

Cockpit Depth 29″ | 73CM

Cockpit Area 64SQ.FT. | 5.95M2

Approx. Length Boat/Trailer 31′ | 9.4M

Yamaha F300

RPM	MPH	GPH	MPG
1000	5.3	1.3	4.08
1500	7.5	2.2	3.41
2000	9.5	3.7	2.57
2500	14.4	5.2	2.77
3000	23.1	6.8	3.4
3500	28.7	8.7	3.30
4000	33.3	11.4	2.92
4500	38.3	15.1	2.54
5000	43.0	22.1	1.95
5500	47.2	25.5	1.85
5800	49.8	26.3	1.89

262CX DUAL CONSOLE

By:: bellhartmarine

4
Oct

The 262CX Crossover is the perfect union of offshore performance and unsinkability of an EdgeWater with the seating, storage, amenities and versatility of an offshore boat. The 262cx will do anything you want to do on the water in an offshore boat while keeping you and your crew safe regardless of the conditions. With its deep-V hull, Single Piece Infusion® (SPI) construction, high-grade components, and the reliability of Yamaha four-stroke technology, the 262cx operates in a class of all its own. Still, it’s an offshore boat that outperforms all comparable boats in any other category.

STANDARD FEATURES:

CONSTRUCTION:

Single Piece Infusion (SPI) Structural System

Limited Lifetime Structural Hull Warranty

NMMA, ABYC & CE Certified

Self Bailing Non-Skid Decks

NO WOOD All Composite Construction

Closed-Cell Foam Flotation

Variable Deadrise Deep V Hull

High Density Composite Transom

White Gelcoat Hull Color

262cx Hardware

HARDWARE:

Walk-thru Transom Door w/ SS Latch

Starboard Side Dive Door w/ Stainless Steel Latch

Folding Transom Boarding Ladder

Welded 316L Stainless Steel Recessed Bow Rail

Heavy Duty White Rubrail w/ Black Insert

Stainless Steel Gunwale Mounted Rod Holders (4)

Stainless Steel Bow and Stern Eyes (3)

10″ Stainless Steel Cleats (6)

Transom Mount Rod Holders (4)

Fire Extinguishers (2)

262cx Console & Top

CONSOLE & TOP:

White Powdercoated Fiberglass Hardtop w/ LED Spreader Lights (2) & Electronics Box

Port Console Storage Compartment

Starboard Walk-in Console

Freshwater Sink w/ Pull-out Shower & Corian® Countertop

Electric Fresh Water Head w/19 Gallon Reservoir, Overboard Discharge & Pumpout

Wood Laminate Storage Cabinets in Head Compartment

Custom Tempered Glass Frameless Windshield

Deluxe Stainless Steel Steering Wheel w/ Power Knob

Hydraulic Seastar® Steering w/ Tilt Helm

Ritchie Compass

Under Gunwale Rod Racks

Stainless Steel Cockpit Toe Railsv

Stainless Steel Gunwale Mounted Cup Holder/Rod Holders (4)

Canvas Bow & Cockpit Covers

262cx Electrical System

ELECTRICAL SYSTEM:

LED Cockpit/Livewell Lighting

LED Navigation Lights

Underwater Blue LED Lights (2)

1250 GPH Auto/Manual Bilge Pump (1)

Console Switch Panel w/ Waterproof Switches, Circuit breakers & 12V Outlet

Waterproof Electrical Connectors & Tin-Plated Copper Wiring

Battery Selector Switch & Wiring for Dual Batteries

Transom Freshwater Shower

Raw Water Washdown Outlet

Lenco® Recessed Electric Trim Tabs w/ Indicators

262cx Seating & Storage

SEATING / STORAGE:

Heavy-Duty Marine Grade UV Resistant Vinyl Upholstery

Folding Stern Seat w/ Backrest

Deluxe Adjustable Double Wide Helm Seat with Bolster

Starboard Side Prep Station w/ Fresh Water Sink, Insulated Storage & Sliding 50QT Premium Cooler

Port Side Ultra Lounger with Insulated Storage

Bow Lounge Seating w/Armrests w/ Filler & Table Leg

Insulated Bow Fishbox/Coolers (3) w/ Overboard Drains

28 Gallon Transom Baitwell

Starboard Side Console Storage Compartment

In-Floor Storage/Ski Locker

Drink Holders at All Seat Locations

ANCHOR SYSTEM:

Bow Anchor Locker w/ Overboard Drain

SS Anchor Roller w/ 8″ SS Cleat & Anchor Retainer

Electric SS Anchor Windlass w/ 200′ Rode-15′ Chain

SPECS:

Length	26’5″ \| 8.2m
Beam	9’3″ \| 2.8m
Draft (Boat Only)	21″ \| 53.3cm
Boat Weight (approx)	5750lbs \| 2608kg
Weight Capacity	3250lbs \| 1474kg
Person Capacity	12
Person Weight	1980lbs \| 900kg
Fuel Capacity	163gal \| 617L
Transom Height	Twin-25”
Max Power	500hp \| 375kw
Cockpit Depth	27″ \| 69cm
Cockpit Area	61sq.ft. \| 5.7m²
Approx. Length Boat/Trailer	33′ \| 10m
Bridge Clearance w/out Top	6’4″ \| 1.93m
Bridge Clearance w/T-Top	8’0” \| 2.4m
Foam Floatation	Unsinkable/Level
