Center Console

325 CENTER CONSOLE

Where weight is critical for superior hull performance and fuel economy in a power boat, the 320CC out performs every boat in its class. Built using Single-Piece Infusion, or SPI, enabled us to create a lighter, more efficient, more environmentally sensitive power boat. It’s fishing machine that keeps the family in mind.
HERE ARE  THE SPECS ON THE 325CC
Length 31’10” | 9.7m
Beam 10’2″ | 3.1m
Draft (Boat Only) 22″ | 56cm
Person Capacity 12
Dry Weight (w/o Engines, approx.) 7700LBS
Person Weight 1980lbs | 900kg
Fuel Capacity 300gal | 1135L
Transom Height Twin-25″
Max Power 700hp | 525kw
Cockpit Depth 30″ | 76cm
Cockpit Area 130sq.ft. | 12m2
Approx. Length Boat/Trailer 40′ | 12.1m
  • Single Piece Infusion (SPI) Structural System
  • Limited Lifetime Structural Hull Warranty
  • NMMA, ABYC & CE Certified
  • Self Bailing Non-Skid Decks
  • NO WOOD All Composite Construction
  • Closed-Cell Foam Flotation
  • Variable Deadrise Deep V Hull
  • High Density Composite Transom
  • White Gelcoat Hull Color
    • LED Cockpit/Livewell Navigation Lighting
    • LED Navigation Lights
    • 2000 GPH Auto/Manual Bilge Pump Aft, High Water Alarm
    • 1000 GPH Auto/Manual Bilge Pump Midship
    • Console Interior Main Distribution Panel w/Battery Switches, Circuit Breakers, and Voltage Displays
    • Lenco® Dual Ram Recessed Trim Tabs w/ Indicators
    • Console Waterproof Switch Panels & 12V Outlet
    • Waterproof Connectors / Tin-Plated Copper Wiring
    • House/Engine Battery System w/ On-Off Switches, Battery Charger w/ Shore Power Inlet, Circuit Breaker & Cord
    • LED Blue Underwater Lights (2)
    • Fusion Stereo Package w/Bluetooth & JL Audio 7.7″ Speakers (4)
    • Console Sump Box
    • Fiberglass Hardtop w/Rod Holders (6), LED Spreader Lights (2), Helm Light, Instrument Box, & Skylight
    • Custom Clear Windshield w/ Aluminum Hardtop Support
    • White Powdercoating for Hardtop
    • Yamaha Electronic Steering w/Tilt Helm
    • Deluxe Stainless Steel Steering Wheel w/Power Knob
    • Helm Stainless Steel Drink Holders
    • Ritchie Compass
    • Tip-Out Storage Bin
    • Console Interior Battery Compartment w/ Access Door
    • Removable Console Electronics Access Panel
    • Console Bilge Access Door
    • Walk-in Console W/Fiberglass Liner
    • Interior Console Storage Center w/Drawers
    • Folding Stainless Steel Coat Hangers (2)
    • Interior Console Fresh Water Sink w/Pull-out Shower
    • Electric Fresh Water Head w/Holding Tank, Overboard Discharge & Pumpout

    325CC



    Yamaha Twin F300’S

    Horsepower300 x 3
    Displacement4.2L x2
    Weight (LBS)56
    Gear Ratio1.75:1
    Mounting Height2-2
    RPM MPH GPH MPG
    1000 6.1 2.4 2.54
    1500 8.6 4.2 2.05
    2000 10.0 7.2 1.39
    2500 16.4 10.6 1.55
    3000 25.4 13.6 1.87
    3500 31.1 17.0 1.83
    4000 36.7 22.7 1.62
    4500 42.5 29.8 1.43
    5000 47.4 37.4 1.27
    5500 52.0 45.1 1.15
    6000 57.0 53.1 1.07

262 Center Console

The 262CC is the perfect union of offshore performance and unsinkability of an EdgeWater with the seating, storage, amenities and versatility of an offshore boat. The 262CC will do anything you want to do on the water in an offshore boat while keeping you and your crew safe regardless of the conditions. With its deep-V hull, Single Piece Infusion® (SPI) construction, high-grade components, and the reliability of Yamaha four-stroke technology, the 262CCoperates in a class of all its own. Still, it’s an offshore boat that outperforms all comparable boats in any other category.

STANDARD FEATURES:

CONSTRUCTION:

SPI Single Piece Infusion
Single Piece Infusion (SPI) Structural System

Limited Lifetime Structural Hull Warranty

NMMA, ABYC & CE Certified

Self Bailing Non-Skid Decks

NO WOOD All Composite Construction

Closed-Cell Foam Flotation

Variable Deadrise Deep V Hull

High Density Composite Transom

White Gelcoat Hull Color



HARDWARE:

Walk-thru Transom Door w/ SS Latch

Starboard Side Dive Door w/ Stainless Steel Latch

Folding Transom Boarding Ladder

Welded 316L Stainless Steel Recessed Bow Rail

Heavy Duty White Rubrail w/ Black Insert

Stainless Steel Gunwale Mounted Rod Holders (4)

Stainless Steel Bow and Stern Eyes (3)

10″ Stainless Steel Cleats (6)

Transom Mount Rod Holders (4)

Fire Extinguishers (2)

262cx Console & Top

CONSOLE & TOP:

White Powdercoated Fiberglass Hardtop w/ LED Spreader Lights (2) & Electronics Box

Port Console Storage Compartment

Starboard Walk-in Console

Freshwater Sink w/ Pull-out Shower & Corian® Countertop

Electric Fresh Water Head w/19 Gallon Reservoir, Overboard Discharge & Pumpout

Wood Laminate Storage Cabinets in Head Compartment

Custom Tempered Glass Frameless Windshield

Deluxe Stainless Steel Steering Wheel w/ Power Knob

Hydraulic Seastar® Steering w/ Tilt Helm

Ritchie Compass

Under Gunwale Rod Racks

Stainless Steel Cockpit Toe Railsv

Stainless Steel Gunwale Mounted Cup Holder/Rod Holders (4)

Canvas Bow & Cockpit Covers

262cx Electrical System

ELECTRICAL SYSTEM:

LED Cockpit/Livewell Lighting

LED Navigation Lights

Underwater Blue LED Lights (2)

1250 GPH Auto/Manual Bilge Pump (1)

Console Switch Panel w/ Waterproof Switches, Circuit breakers & 12V Outlet

Waterproof Electrical Connectors & Tin-Plated Copper Wiring

Battery Selector Switch & Wiring for Dual Batteries

Transom Freshwater Shower

Raw Water Washdown Outlet

Lenco® Recessed Electric Trim Tabs w/ Indicator

SEATING / STORAGE:

Heavy-Duty Marine Grade UV Resistant Vinyl Upholstery

Folding Stern Seat w/ Backrest

Deluxe Adjustable Double Wide Helm Seat with Bolster

Starboard Side Prep Station w/ Fresh Water Sink, Insulated Storage & Sliding 50QT Premium Cooler

Port Side Ultra Lounger with Insulated Storage

Bow Lounge Seating w/Armrests w/ Filler & Table Leg

Insulated Bow Fishbox/Coolers (3) w/ Overboard Drains

28 Gallon Transom Baitwell

Starboard Side Console Storage Compartment

In-Floor Storage/Ski Locker

Drink Holders at All Seat Locations



ANCHOR SYSTEM:

Bow Anchor Locker w/ Overboard Drain

SS Anchor Roller w/ 8″ SS Cleat & Anchor Retainer

Electric SS Anchor Windlass w/ 200′ Rode-15′ Chain

SPECS:

Length 26’5″ | 8.2m
Beam 9’3″ | 2.8m
Draft (Boat Only) 21″ | 53.3cm
Boat Weight (approx) 5750lbs | 2608kg
Weight Capacity 3250lbs | 1474kg
Person Capacity 12
Person Weight 1980lbs | 900kg
Fuel Capacity 163gal | 617L
Transom Height Twin-25”
Max Power 500hp | 375kw
Cockpit Depth 27″ | 69cm
Cockpit Area 61sq.ft. | 5.7m2
Approx. Length Boat/Trailer 33′ | 10m
Bridge Clearance w/out Top 6’4″ | 1.93m
Bridge Clearance w/T-Top 8’0” | 2.4m
Foam Floatation Unsinkable/Level



158CS CENTER CONSOLE

The 158CS was designed as an offshore boat for escapades beyond the jetty or shuttling provisions to a private island picnic. Its rugged Perma-Grid® construction and Deep “V” hull give it the feel of a much larger offshore boat. The versatile 158CS packs the big boat features into a compact package, such as a self-bailing deck, hefty functional cockpit, ample storage, and the reliability of Yamaha Power. So when you head out in this offshore boat to the sea or to the beach, enjoy the day with complete confidence.

STANDARD FEATURES:

158CS Construction

CONSTRUCTION:

PermaGrid System
PermaGrid® Fiberglass Stringer System

Limited Lifetime Structural Hull Warranty

NMMA, ABYC & CE Certified

Self Bailing Non-Skid Decks

NO WOOD All Composite Construction

Closed-Cell Foam Flotation

Variable Deadrise Deep V Hull

High Density Composite Transom

White Gelcoat Hull Color

158CS Hardware

HARDWARE:

Stainless Steel Bow and Stern Lifting Rings (3)

Welded 316L Stainless Steel 1” Split Bow Rail

8″ Stainless Steel Cleats (4)

Heavy Duty White Rubrail with Black Insert

Folding Stainless Steel Transom Boarding Ladder w/ Grab Handle

Portable 6 Gallon Fuel Tanks (2)

Fire Extinguisher

158CS Console & Top

CONSOLE & TOP:

3/8″ Clear Acrylic Windshield

Stainless Steel Steering Wheel w/ Cable Steering

Ritchie Compass

Stainless Steel Console Grab Handles (2)

Stainless Steel Drink Holders on Console (2)

158CS Electrical System

ELECTRICAL SYSTEM:

LED Navigation Lights

1000 GPH Auto/Manual Bilge Pump (1)

Console Switch Panel with waterproof switches, circuit breakers & 12V Outlet

Waterproof Electrical Connectors & Tin-Plated Copper Wiring

158CS Seating & Storage

SEATING / STORAGE:

Heavy-Duty Marine Grade UV Resistant Vinyl Upholstery

Helm Fiberglass Bench Seat w/ Removable Cushions

48 Qt. Console Cooler Seat

Bow Storage Locker w/ Drain

Transom Quarter Storage Compartments (2)

SPECS:

Length 15’1″ | 4.6m
Beam 6’7″ | 2.0m
Draft (Boat Only) 10″ | 25.4cm
Boat Weight (approx) 900lbs | 408.23kg
Weight Capacity 1400bs | 636kg
Person Capacity 6
Person Weight 750lbs | 341kg
Fuel Capacity 13gal | 49L
Transom Height Single-20″
Max Power 90hp | 67kw
Max Engine Weight 325lbs | 147.4kg
Cockpit Depth 15.5″ | 39.3cm
Cockpit Area 39sq.ft. | 3.62m2
Approx. Length Boat/Trailer 21′ | 6.4m
Bridge Clearance w/out Top 4’6″ | 1.37m
Bridge Clearance w/Suntop 6’6″ | 1.98m
Foam Floatation Unsinkable/Level

CREVALLE 26 HCO

The Crevalle 26 HCO is ideal for fisherman who want the flexibility of a family boat.  This 26 foot center console boat  performs flawlessly whether it’s on the river, lake, inshore or offshore fishing trips.
Crevalle 26 HCO Running

Specifications crevalle 26 HCO

LOA                                              25′ 6″
BEAM                                          8′ 6″
deadrise                                       16°
engine                                          300 – 400 HP
Approx. Fuel                               90gal
Draft                                             12 – 14 inches
Approx. weight no motor         4,000 lbs.
persons capacity                            9

26HCO Line Drawing

Standard Hull & deck features

Standard on Our Hull & Deck

  • No wood construction
  • Epoxy coated fuel tanks
  • CRIMP- Crevalle Resin Infusion Manufacturing Process
  • 10 Year Transferable Hull Warranty
  • Black or white rub rail with Stainless Steel Insert
  • Composite Transom
  • Dedicated Anchor Locker
  • Position Control Hinges on all Hatches
  • Fiberglass Hatches Finished on both sides
  • NMMA Certified using ABYC Standards
  • Self Bailing cockpit
  • Forged Stainless Steel thru hulls with duckbill valves & ball valves
  • Standard 6” Engine Jack Plate combined with notched transom allows our boats to leap on plane in shallow water (Jack Plate all the way up) with no propeller cavitation.
  • Marelon Seacocks (Composite material, no corrosion or electrolysis)
  • Anti-Venturi thru-hull fittings (Allows pumps to operate at speed)
  • Hidden deck drains with stainless covers and duckbill valves
  • Welded one-piece stern eyes
  • Deep cockpit for a safe dry ride
  • Yacht Grip, non-skid deck
  • Setback transom provides full aft deck
  • Under gunwale rod storage for (3) 8′ rods each side
  • Forward lockable rod storage with room for (10) 7′-6″ rods
  • 40″ wide flip-up aft seat on centerline for safety
  • Bow Dry storage
  • One removable 65-quart & one 72-quart coolers
  • (6) Custom Crevalle pull-up cleats
  • (8) Standard cup holders
  • Port and Starboard in-gunwale safety gear storage
  • 12″ Multifunction display
  • Floor storage for 5 Gallon Bucket
  • Custom fiberglass leaning post with backrest, rigging tray, tackle storage, sink, glove boxes, removable cooler, cup holders & rod holders
  • Unobstructed aft fishing deck
  • Pre wired 8 AWG wiring for trolling motor
  • Trolling motor plug panel
  • Forward grab rails
  •  Automatic/manual bilge pump
  • Bilge pump & high water bilge pump
  • Fresh Water Transom Shower
  • Fuel Water separator
  • Wet Sounds Speakers
  • Trim Tabs -Lenco with LED indicators

3 Live Wells

2 Release Wells

  • Insulated 28 Gallon aft release wells
  • Venturi aeration bubbler
  • Dual jets
  • Protected overflow stand pipe
  • Commercial Aquarium type aeration
  • Blue gel coat
  • 800 gph, aeration pumps
  • LED lighting
  • Intake plumbing that prevents water levels from dropping  at speed.

1 Bait Well

  • Adjustable aeration jet can be closed to convert bait well into fully insulated cooler
  • Wide opening for cast net use
  • Side mounted overflow fitting with removable filter dome means no stand pipe to get in the way of netting bait
  • Blue gel coat
  • Gasketed live well lids

All Wells Feature:

  • Blue gel coat
  • 800 gph, dual port aeration pumps
  • Insulation
  • Marelon Seacocks for safety and easy in water pump service
  • LED lighting

325 CENTER CONSOLE

Where weight is critical for superior hull performance and fuel economy in a power boat, the 320CC out performs every boat in its class. Built using Single-Piece Infusion, or SPI, enabled us to create a lighter, more efficient, more environmentally sensitive power boat. It’s fishing machine that keeps the family in mind.
HERE ARE  THE SPECS ON THE 325CC
Length 31’10” | 9.7m
Beam 10’2″ | 3.1m
Draft (Boat Only) 22″ | 56cm
Person Capacity 12
Dry Weight (w/o Engines, approx.) 7700LBS
Person Weight 1980lbs | 900kg
Fuel Capacity 300gal | 1135L
Transom Height Twin-25″
Max Power 700hp | 525kw
Cockpit Depth 30″ | 76cm
Cockpit Area 130sq.ft. | 12m2
Approx. Length Boat/Trailer 40′ | 12.1m
  • Single Piece Infusion (SPI) Structural System
  • Limited Lifetime Structural Hull Warranty
  • NMMA, ABYC & CE Certified
  • Self Bailing Non-Skid Decks
  • NO WOOD All Composite Construction
  • Closed-Cell Foam Flotation
  • Variable Deadrise Deep V Hull
  • High Density Composite Transom
  • White Gelcoat Hull Color
    • LED Cockpit/Livewell Navigation Lighting
    • LED Navigation Lights
    • 2000 GPH Auto/Manual Bilge Pump Aft, High Water Alarm
    • 1000 GPH Auto/Manual Bilge Pump Midship
    • Console Interior Main Distribution Panel w/Battery Switches, Circuit Breakers, and Voltage Displays
    • Lenco® Dual Ram Recessed Trim Tabs w/ Indicators
    • Console Waterproof Switch Panels & 12V Outlet
    • Waterproof Connectors / Tin-Plated Copper Wiring
    • House/Engine Battery System w/ On-Off Switches, Battery Charger w/ Shore Power Inlet, Circuit Breaker & Cord
    • LED Blue Underwater Lights (2)
    • Fusion Stereo Package w/Bluetooth & JL Audio 7.7″ Speakers (4)
    • Console Sump Box
    • Fiberglass Hardtop w/Rod Holders (6), LED Spreader Lights (2), Helm Light, Instrument Box, & Skylight
    • Custom Clear Windshield w/ Aluminum Hardtop Support
    • White Powdercoating for Hardtop
    • Yamaha Electronic Steering w/Tilt Helm
    • Deluxe Stainless Steel Steering Wheel w/Power Knob
    • Helm Stainless Steel Drink Holders
    • Ritchie Compass
    • Tip-Out Storage Bin
    • Console Interior Battery Compartment w/ Access Door
    • Removable Console Electronics Access Panel
    • Console Bilge Access Door
    • Walk-in Console W/Fiberglass Liner
    • Interior Console Storage Center w/Drawers
    • Folding Stainless Steel Coat Hangers (2)
    • Interior Console Fresh Water Sink w/Pull-out Shower
    • Electric Fresh Water Head w/Holding Tank, Overboard Discharge & Pumpout

    325CC



    Yamaha Twin F300’S

    Horsepower300 x 3
    Displacement4.2L x2
    Weight (LBS)56
    Gear Ratio1.75:1
    Mounting Height2-2
    RPM MPH GPH MPG
    1000 6.1 2.4 2.54
    1500 8.6 4.2 2.05
    2000 10.0 7.2 1.39
    2500 16.4 10.6 1.55
    3000 25.4 13.6 1.87
    3500 31.1 17.0 1.83
    4000 36.7 22.7 1.62
    4500 42.5 29.8 1.43
    5000 47.4 37.4 1.27
    5500 52.0 45.1 1.15
    6000 57.0 53.1 1.07

CREVALLE 24 HCO

The Crevalle 24 HCO is ideal for fisherman who want the flexibility of a family boat.  This 24 foot center console boat  performs flawlessly whether it’s on the river, lake, inshore or offshore fishing trips.
Crevalle 26 HCO Running

Specifications crevalle 24 HCO

LOA                                              23′ 6″
BEAM                                          8′ 6″
deadrise                                       16°
engine                                          250 – 300 HP
Approx. Fuel                               80 gal
Draft                                             12 – 14 inches
Approx. weight no motor         3,800 lbs.
persons capacity                            8

26HCO Line Drawing

Standard Hull & deck features

Standard on Our Hull & Deck

  • No wood construction
  • Epoxy coated fuel tanks
  • CRIMP- Crevalle Resin Infusion Manufacturing Process
  • 10 Year Transferable Hull Warranty
  • Black or white rub rail with Stainless Steel Insert
  • Composite Transom
  • Dedicated Anchor Locker
  • Position Control Hinges on all Hatches
  • Fiberglass Hatches Finished on both sides
  • NMMA Certified using ABYC Standards
  • Self Bailing cockpit
  • Forged Stainless Steel thru hulls with duckbill valves & ball valves
  • Standard 6” Engine Jack Plate combined with notched transom allows our boats to leap on plane in shallow water (Jack Plate all the way up) with no propeller cavitation.
  • Marelon Seacocks (Composite material, no corrosion or electrolysis)
  • Anti-Venturi thru-hull fittings (Allows pumps to operate at speed)
  • Hidden deck drains with stainless covers and duckbill valves
  • Welded one-piece stern eyes
  • Deep cockpit for a safe dry ride
  • Yacht Grip, non-skid deck
  • Setback transom provides full aft deck
  • Under gunwale rod storage for (3) 8′ rods each side
  • Forward lockable rod storage with room for (10) 7′-6″ rods
  • 40″ wide flip-up aft seat on centerline for safety
  • Bow Dry storage
  • One removable 65-quart & one 72-quart coolers
  • (6) Custom Crevalle pull-up cleats
  • (8) Standard cup holders
  • Port and Starboard in-gunwale safety gear storage
  • 12″ Multifunction display
  • Floor storage for 5 Gallon Bucket
  • Custom fiberglass leaning post with backrest, rigging tray, tackle storage, sink, glove boxes, removable cooler, cup holders & rod holders
  • Unobstructed aft fishing deck
  • Pre wired 8 AWG wiring for trolling motor
  • Trolling motor plug panel
  • Forward grab rails
  •  Automatic/manual bilge pump
  • Bilge pump & high water bilge pump
  • Fresh Water Transom Shower
  • Fuel Water separator
  • Wet Sounds Speakers
  • Trim Tabs -Lenco with LED indicators

3 Live Wells

2 Release Wells

  • Insulated 28 Gallon aft release wells
  • Venturi aeration bubbler
  • Dual jets
  • Protected overflow stand pipe
  • Commercial Aquarium type aeration
  • Blue gel coat
  • 800 gph, aeration pumps
  • LED lighting
  • Intake plumbing that prevents water levels from dropping  at speed.

1 Bait Well

  • Adjustable aeration jet can be closed to convert bait well into fully insulated cooler
  • Wide opening for cast net use
  • Side mounted overflow fitting with removable filter dome means no stand pipe to get in the way of netting bait
  • Blue gel coat
  • Gasketed live well lids

All Wells Feature:

  • Blue gel coat
  • 800 gph, dual port aeration pumps
  • Insulation
  • Marelon Seacocks for safety and easy in water pump service
  • LED lighting

170CC CENTER CONSOLE





A small boat built in a big way, the 170CC models are fully featured center console boats that can take you anywhere. These center console boats give you more interior room which means more space for people, equipment and fish. Comfortable seating for six, loads of storage, a stable Deep-V hull, and unsinkable construction make these center console boats stand out in the sea of stripped-out utility boats. Top it off with a Yamaha four stroke for the ultimate in reliability, efficiency and performance for a great boat.

170CC Construction

Construction:

PermaGrid® Fiberglass Stringer System

Limited Lifetime Structural Hull Warranty

NMMA, ABYC & CE Certified

Self Bailing Non-Skid Decks

NO WOOD All Composite Construction

Closed-Cell Foam Flotation

Variable Deadrise Deep V Hull

High Density Composite Transom

White Gelcoat Hull Color

170CC Hardware

Hardware:

8″ Stainless Steel Cleats (6)

Stainless Steel Bow and Stern Eyes (3)

Welded 316L Stainless Steel 1″ Split Bow Rail

Stainless Steel Gunwale Mounted Rod Holders (2)

Cockpit Drink Holders, Forward (2), Aft (2)

Waterproof electrical connectors & Tin Plated Copper Wiring

Heavy Duty White Rubrail w/ Black Insert

Swim Platform with Folding Stainless Steel Ladder

Stainless Steel Drink Holders on Console (2)

Fire Extinguishers (2)

170CC Console & Top

Console & Top:

3/8″ Clear Acrylic Windshield

Stainless Steel Steering Wheel

Hydraulic Steering w/ Tilt Helm

Ritchie Compass

Welded 316L Stainless Steel Console Grab Rail

170CC Electrical System

Electrical System:

LED Navigation Lights

LED Cockpit/Livewell Lighting

1000 GPH Auto/Manual Bilge Pump (1)

Console Switch Panel with waterproof switches, circuit breakers, 12V Outlet, Waterproof Electrical Connectors, Tin-Plated Copper Wiring & Group 24 Battery with Battery switch

Console Interior Light

170CC Seating & Storage

Seating / Storage:

Heavy-Duty Marine Grade UV Resistant Vinyl Upholstery

Custom Convertible Fiberglass Helm Seat/Leaning Post w/ Storage

54 Qt. Console Cooler Seat w/ Cushion & Backrest

Transom Quarter Seats w/ Cushions & Backrests (2) w/ Storage

Transom Jump Seat Storage Compartments

Bow Locker

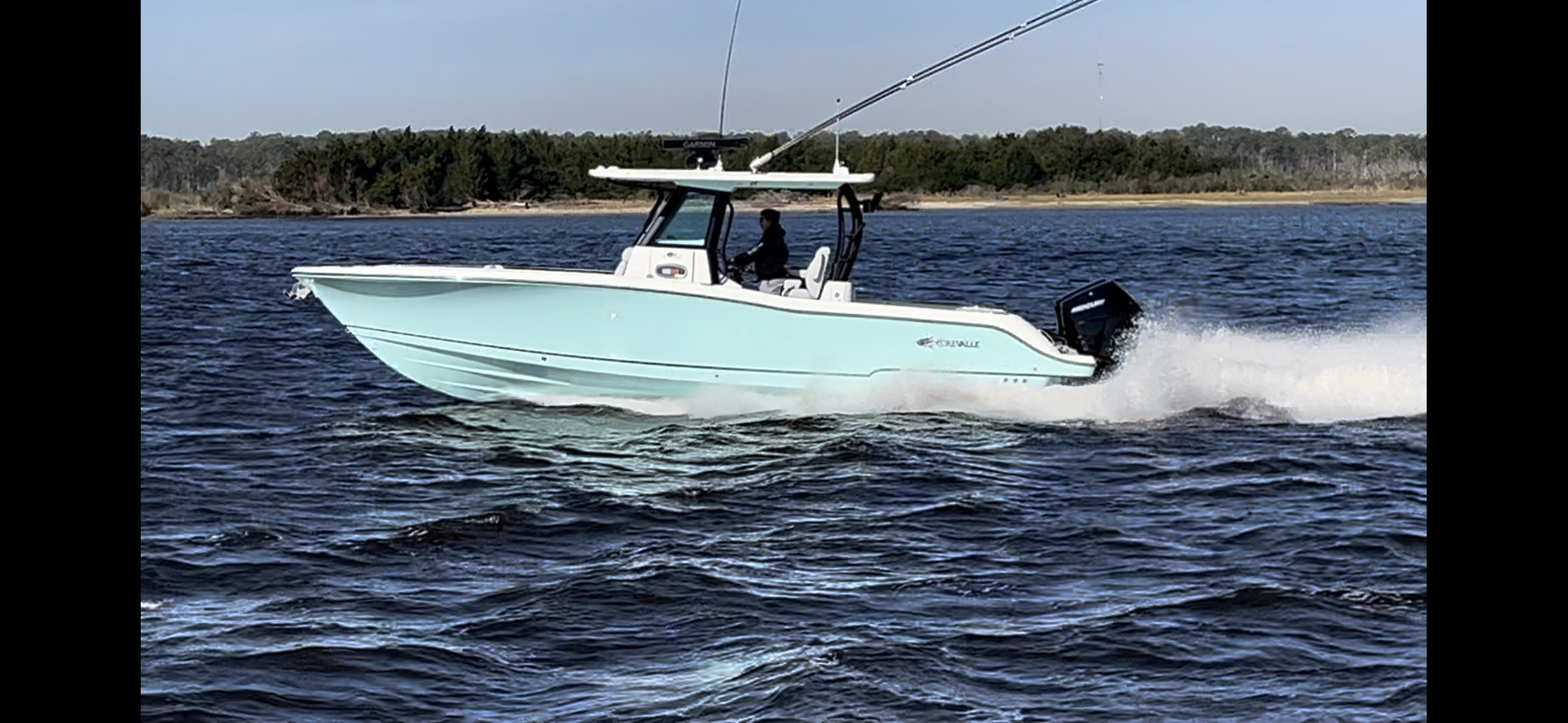

CREVALLE 33 CSF

The Crevalle 33CSF is ideal for fisherman who want the flexibility of a family boat.

The 33 CSF is Crevalle’s masterpiece.

Our flagship offshore fishing boat is spectacular, and it evolved from customer feedback we heard time and again: I want a bigger, faster, longer-range boat with all the Crevalle bells and whistles. The 33 CSF combines next-level innovation and superior quality into a high-performance hybrid boat that continues the Crevalle tradition of versatility and comfort. This 33-foot family-friendly boat was designed to turn heads and be the most advanced boat in its class.

gallery-33CSF-01

Specifications crevalle 33CSF

LOA                                              33′ 2″
BEAM                                          10′ 6″
deadrise                                       20°
engine                                          600 – 900 HP
Approx. Fuel                               300gal
Draft                                             20 – 22 inches
Approx. weight no motor         8,800 lbs.
water tank                                   30 GAL

33CSF Rendering

Standard Hull & deck features

Standard on Our Hull & Deck

    • No wood construction
    • Epoxy coated fuel tanks
    • CRIMP- Resin Infusion Manufacturing Process
    • 10 Year structural hull warranty
    • Black or white rub rail with stainless steel insert
    • Composite transom
    • Position control hinges
    • Lockable bow rod storage (6 rods)
    • Fiberglass hatches finished on both sides
    • NMMA Certified using ABYC Standards
    • Yacht Grip, non-skid deck
    • Powder coated aluminum pipework
    • (6) Custom Crevalle pull-up cleats (through bolted)
    • (17)  Standard cup holders
    • Dedicated in gunwale port & starboard safety gear storage
    • Floor storage for 5 gallon bucket
    • Custom fiberglass leaning post, Yeti cooler slide and a tackle prep station
    • Dedicated trolling motor mounting surface
    • Transom tackle center
    • Custom powder coated aluminum grab rails molded into the deck
    • Fresh water shower in the hard top
    • Extended sized hard top– powder coated aluminum frame, integrated windshield, speakers, rod holders
    • Wet Sounds speakers
    • Dual Entry (dive door and transom door)
    • Trim Tabs
    • Underwater lights

      All 3 Live Wells Feature

      • 30 Gallon aft release wells
      • Blue gel coat
      • 1100 GPH Pumps
      • Insulation
      • LED lighting

      Standard on Our Upholstery

      • Custom upholstery with contoured seating and cushions
      • Tone on tone color accents, top stitching, heat reflective vinyls and multi density foam provide maximum endurance and comfort
      • Contoured forward helm seating and leaning post cushions
      • Coaming pads (Cockpit and Bow)

      Standard on Our Helm

      • Your choice colored gelcoat helm face to eliminate secondary glare
      • Dual 16′ Displays (Garmin or Simrad)
      • Deluxe stainless steering wheel with power knob
      • Integrated, dual height, non-skid foot rests
      • Compass
      • VHF
      • Stainless horn
      • Wireless phone charger
      • OEM engine displays
      • Dual USB ports
      • Backlit switch labels
      • Stainless cup holders
      • Foot pads
      • Integrated engine data on electronics
      • Hydraulic or electronic steering with tilt helm
      • Tool rack with hook/knife/plier holders
      • Helm panel with ring lit, push button, stainless switches, and backlit function labels

      Technical Standards

      • LED cockpit lighting throughout(RGBW)
      • Deutsch water resistant plugs on harnesses
      • Sealed Bussbars
      • Heat shrink electrical terminals
      • Circuit breakers (not fuses)
      • No visible fasteners on panels
      • East access battery switch in the leaning post
      • LED Navigation lights
      • Deluxe battery hold down trays
      • Bilge pump and high water bilge pump

230CC CENTER CONSOLE

The EdgeWater 230CC boasts Single Piece Infusion Construction, a fully finished bilge and more standard features than other boats in its class. Packaged with Yamaha Four Stroke power up to 300hp, this boat is sure to impress in the performance category. It is the first in a fresh new line of offshore center console models designed to be the perfect blend between fishing and family cruising. 230CC review on boattest.com.



Standard Features

CONSTRUCTION
  • Single Piece Infusion (SPI) Structural System
  • Limited Lifetime Structural Hull Warranty
  • NMMA, ABYC & CE Certified
  • Self-Bailing Non-Skid Decks
  • NO WOOD All Composite Construction
  • Closed-Cell Foam Flotation
  • Variable Deadrise Deep V Hull
  • High Density Composite Transom
  • High Density Composite Transom
  • White Gelcoat Hull Color
NOTABLE STANDARD FEATURES
  • Gelcoat Hull Color
  • Retractable Ski Pylon
  • Powder Coated Package
  • Fiberglass Hardtop
  • Bow Table
  • Bow Filler Cushion
  • Freshwater Washdown
  • Raw water Washdown
  • Underwater Lights
  • Forward Walk-in Head
  • Integrated Swim Platform w/ Ladder
  • Integrated Swim Platform w/ Anchor Storage
HARDWARE
  • Stainless Steel Bow and Stern Eyes (3)
  • Powder Coated Recessed Bow Rail
  • Stainless Steel Gunwale Mounted Rod Holders (4)
  • 8″ Stainless Steel Pop-up Cleats (6)
  • Transom Boarding Ladder
  • Heavy Duty White Rubrail w/ Black Insert
  • Walk-thru Transom Door w/ SS Latch
  • Retractable Ski Pylon
  • Stainless Steel Cockpit Toe Rails (2)
CONSOLE & TOP
  • Fiberglass Hardtop, LED Spreader Lights (2), PFD Storage Bag and E-Box
  • Powder Coated T-Top Frame with Rod Holders (4)
  • Forward Walk-in Console w/ Fiberglass Liner
  • 3/8″ Clear Acrylic Windshield
  • Deluxe Stainless Steel Steering Wheel w/ Power Knob
  • Hydraulic Seastar® Steering w/ Tilt Helm
  • Console Switch Panel w/ Waterproof Switches, Circuit breakers & 12V Outlet
  • Console Mounted Porta-Potti with Pump out
  • Head – Secured with Cockpit Table Storage, Dive Tank Storage, Bulk Storage, Lighting and Port Hole
  • Ritchie Compass
  • Stainless Steel Drink Holders on Console (2)
  • Helm Catch all for Phones
ELECTRICAL SYSTEM
  • LED Cockpit/Livewell Lighting
  • LED Navigation Lights
  • Underwater Blue LED Lights (2)
  • 1250 GPH Auto/Manual Bilge Pump (1)
  • Waterproof Electrical Connectors & Tin Plated Copper Wiring
  • Battery Selector Switch & Wiring for Dual Batteries
  • Lenco® Recessed Electric Trim Tabs w/ Indicators
  • Accessory Outlet
COCKPIT & DECK
  • Heavy-Duty Marine Grade UV Resistant Vinyl Upholstery
  • U-Shaped Bow Lounge w/ Bolster Cushions
  • Bow Filler w/ Cushions and Table Leg
  • Forward Console Seat
  • Integrated Stern Seat with storage
  • 12 Gallon Insulated Baitwell (under rear seat)
  • Under Gunwale Rod Racks
  • Premium Powder Coated Bucket Bench Seat with Armrest, Flip up Bolsters and slide out premium 94qt cooler
  • Insulated Bow Storage/Fishbox w/ Overboard Drain
  • Raw Water Washdown Outlet
  • Fresh Water Shower w/ 12 Gallon Reservoir
ANCHOR SYSTEM
  • Bow Anchor Locker w/ Overboard Drain
  • Dedicated Stern Anchor Locker

Specs

LENGTH 22’8” | 6.9M
LOA 24’6″ | 7.5M
BEAM 8’6” | 2.6M
DRAFT (BOAT ONLY) 15” | 38.1CM
BOAT WEIGHT (APPROX) 3900LBS | 1769KG
WEIGHT CAPACITY 2549LBS | 1156.2KG
PERSON CAPACITY 10
PERSON WEIGHT 1667LBS | 756.1KG
FUEL CAPACITY 110GAL| 416.4L
TRANSOM HEIGHT SINGLE-25”
MAX POWER 300HP | 23.7KW
COCKPIT DEPTH 25” | 63.5CM
COCKPIT AREA 65SQ/FT | 6M²
APPROX. LENGTH BOAT/TRAILER 31’ | 9.4M



208CC CENTER CONSOLE

The rougher the weather the more you will appreciate cruising in a 208CC deep v hull. Thanks to a deep v hull design, it performs brilliantly in a chop, shrugging off waves and keeping all your passengers dry and perfectly comfortable. The fully encapsulated PermaGrid stringers and foam-filled hull design also mean that no matter how nasty it gets, you have the peace of mind in knowing you are riding in a super-strong and totally unsinkable boat. Whether you want to take the entire gang out to an island to work on their tans or run offshore to spend the day chasing striped bass, the EdgeWater 208CC deep v hull gives you the versatility and confidence to go anywhere you want to.

Standard Features:

188CC Construction

Construction:

PermaGrid® Fiberglass Stringer System

Limited Lifetime Structural Hull Warranty

NMMA, ABYC & CE Certified

Self Bailing Non-Skid Decks

NO WOOD All Composite Construction

Closed-Cell Foam Flotation

Variable Deadrise Deep V Hull

High Density Composite Transom

FULL HULL PEWTER Gelcoat Hull Color

188CC Hardware

Hardware

8″ Stainless Steel Cleats (6)

Stainless Steel Bow and Stern Eyes (3)

Welded 316L Stainless Steel 1″ Split Bow Rail

Stainless Steel Gunwale Mounted Rod Holders (2)

Waterproof Electrical Connectors & Tin-Plated Copper Wiring

Under Gunwale Rod Storage Racks

Heavy Duty White Rubrail with Black Insert

Swim Platform w/ Folding Stainless Steel Ladder

Drink Holders on Console (2)

Fire Extinguishers (2)



Console & Top

3/8″ Clear Acrylic Windshield

Stainless Steel Steering Wheel

Ritchie Compass

Welded 316L Stainless Steel Console Grab Rail

Hydraulic Steering w/ Tilt Helm



188CC Electrical System

Electrical System



LED Navigation Lights

LED Cockpit/Livewell Lighting

1000 GPH Auto/Manual Bilge Pump (1)

Console Switch Panel with waterproof switches, circuit breakers & 12V Outlet

Battery Selector Switch & Wiring For Dual Batteries

Waterproof Electrical Connectors & Tin-Plated Copper Wiring

188CC Seating & Storage

Seating / Storage

Heavy-Duty Marine Grade UV Resistant Vinyl Upholstery

Leaning Post with Backrest, Silver Rod Holders (2) & Storage

54QT Console Cooler Seat w/ Cushion & Backrest

Transom Quarter Seats w/ Cushions & Backrests (2)

Transom Jump Seat Storage Compartments (2)

Bow Anchor Locker with Drain

Helm Seat Storage Compartments (2)

Helm Storage Bin/Baitwell

Mounted Rod Holders (2)

Specs:

Length 20’6″
Beam 8’6″
Draft (Boat Only) 17″
Boat Weight (approx) 3640LBS
Weight Capacity 2500LBS
Person Capacity 9
Person Weight 1485LBS
Fuel Capacity 87GAL
Transom Height Single-25″
Max Power 200HP
Cockpit Depth 28″
Cockpit Area 69SQFT
Approx. Length Boat/Trailer 26’6″
Foam Floatation Unsinkable/Level
loading
